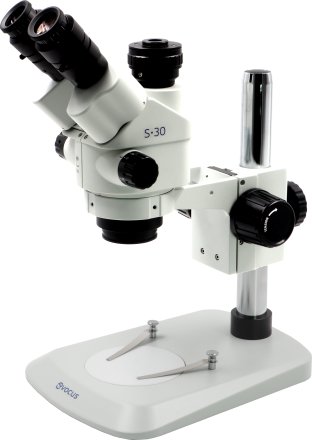

S30 Series Stereo Microscope







Stereo Microscope

Greenough Optical System
Superior Optical System

Reliable Operation Mechanism


Complete Accessories


Diverse Combination



Specifications

Model S30
Optical System Greenough optical system with full coating
Zoom Ratio 6.5:1
Zoom Magnification Continuous with marking
Optical Magnification 7x–45x
Possible Zoom Range 3.75x–90x with specific objective lens
Zoom Drive Horizontal knob
Observation Tube Binocular(S30.001) or Trinocular (S30.002)
Eyepiece 10x/20mm
Inclination Angle 45 degree
Interpupillary Distance 54–75mm
Diopter Adjustment +5/-5
Working Distance 100mm standard (30–165mm) with objective lens
Illumination LED Ring Light(Standard with LED 30)
Focusing Stroke 50mm(tension adjustable)
Base & Stand Base (210x273mm) and pillar stand (H248mm)

Accessories for S30

S30.001 Binocular Type
S30.002 Trinocular Type
S30.003 Eyepiece 10x (standard)
S30.004 Eyepiece 15x
S30.005 Eyepiece 20x
S30.006 Evocus Objective Lens 0.5x for Stereo Microscope
S30.007 Evocus Objective Lens 2.0x for Stereo Microscope
S30.008 Objective Lens 2.0x
S30.009 Transparent Cover Cloth



L90.202 LED-30 Ring Light (Standard)
L90.905 Glass Protection Cover
L90.906 Transparent Cover Cloth
