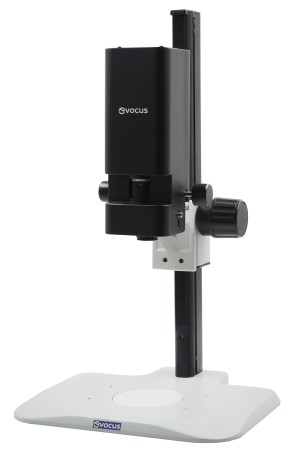

Evocus EIM Series - Inspection Microscope with 0.5x CCD







  • High-resolution and big zoom radio 1:8.3
  • Parallel Optical System
  • Whole focus, uniform illumination
  • Available to observe different objects by using LED illumination or fiber optic illuminati
  • All in 1 (HDMI + USB + SD Card) C-mount camera with high sensitivity CMOS Sensor
  • Simultaneous HDMI & WiFi output

  • Built-in mouse control

  • Built-in image capture & video record to SD card

  • Ultra-Fine color engine with perfect color reproduction capability

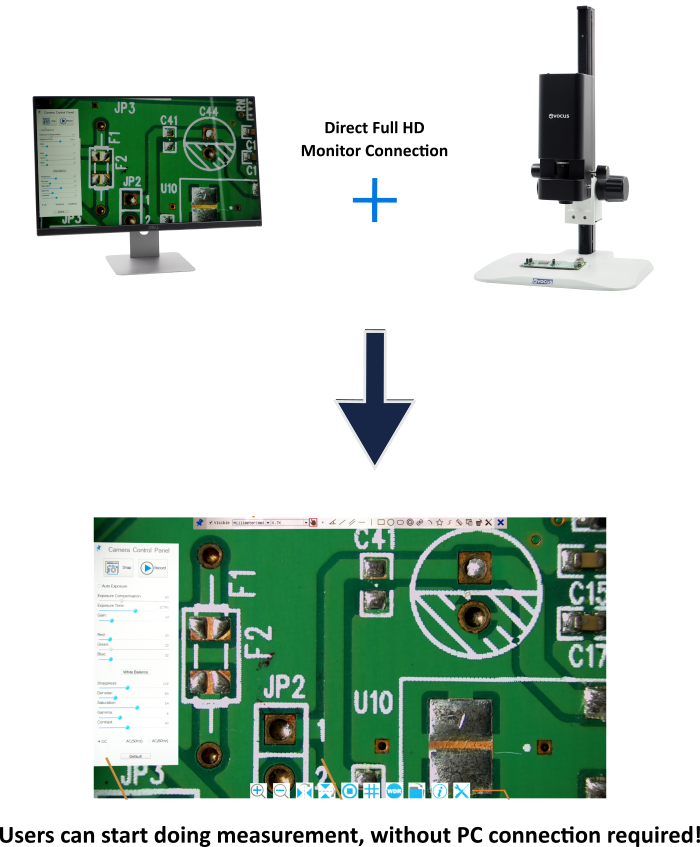

System Diagram

Built-in Software for Measurement





Potential Application:

Scientific Research, Education (Teaching, Demonstrating, and Academic Exchange)
Digital Laboratory, Medical Research
Industrial Visual (PCB Examination, IC Quality Control)
Medical Treatment (Pathological Observation)
Food (Microbial Colony Observation and Counting)
Aerospace, Military (High Sophisticated Weapon)



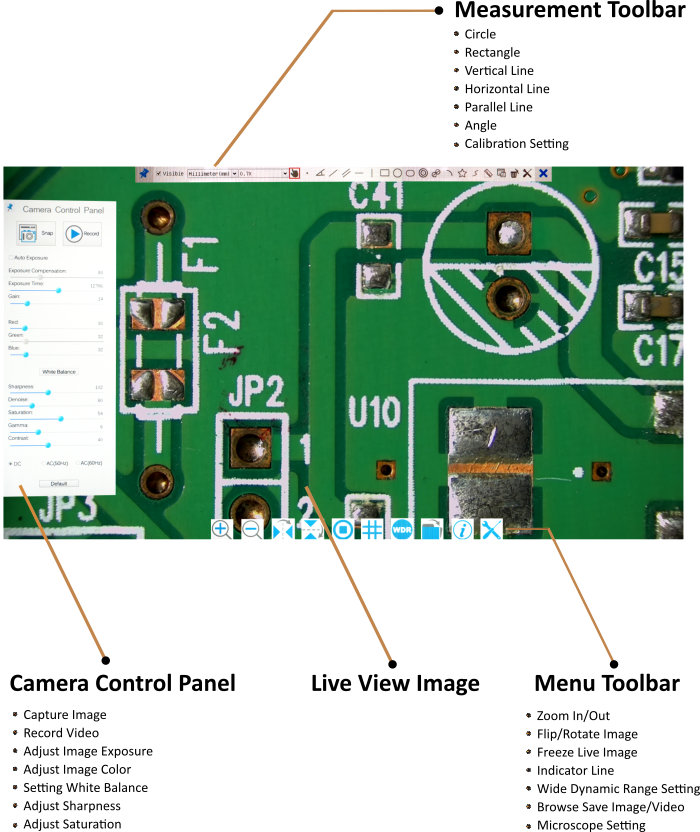

Software Interface





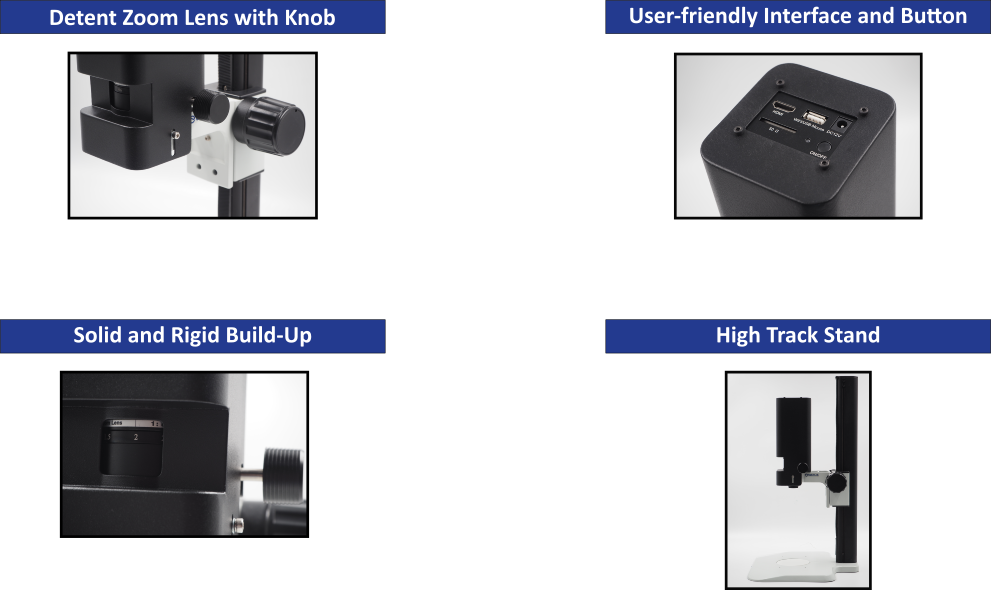

Special Features



Specifications

Model EIM
CCD Adaptor 0.5x
Total Magnification 0.3x - 2.5x
Field of View (mm) 16 x 12 - 1.9 x 1.4
Sensor & Size 1080P/2M/Sony IMX185 (C) 1/1.9" (7.20 X 4.05)
Pixel (µm) 3.75 x 3.75
G Sensitivity Dark Signal

1120mv with 1/30s

0.15mv with 1/30s

FPS Resolution

60 @ 1920 x 1080 (HDMI)

25 @ 1920 x 1080 (WiFi)

Binning 1 x 1
Exposure 0.06ms ~ 918ms
Other Specifications for HDMI Output
UI Operation With USB Mouse
Image Capture JPEG Format with 2M Resolution in SD Card
Video Record ASF Format 1080P 30fps in SD Card
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness, and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
Operating Environment
Operating Temperature (in centidegree) -10 ~ 50
Storage Temperature (in centidegree) -20 ~ 60
Operating Humidity 30 ~ 80%RH
Storage Humidity 10 ~ 60%RH
Power Supply DC 12V/2A Adaptor



Dimension
