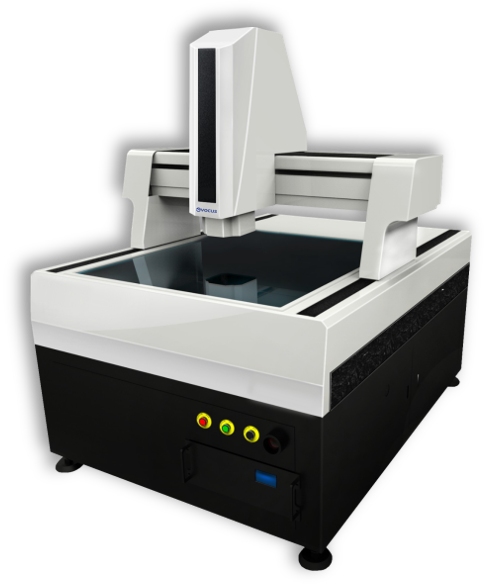

Gantry Structure Fully-auto Video Measuring Machine









*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement​​​​​



High Accuracy of ≤2.2 + L/200µm


Less Error within 2µm


Real-time Navigation for Rapid Locating of Sample Position.


Intelligent Illumination with 8-Division LED Ring Light.


Advance Software - EV Measuring.


Auto Measurement for Fast Operation of Measurement


Auto Focus to Reduce Time and Effort



Unique Features

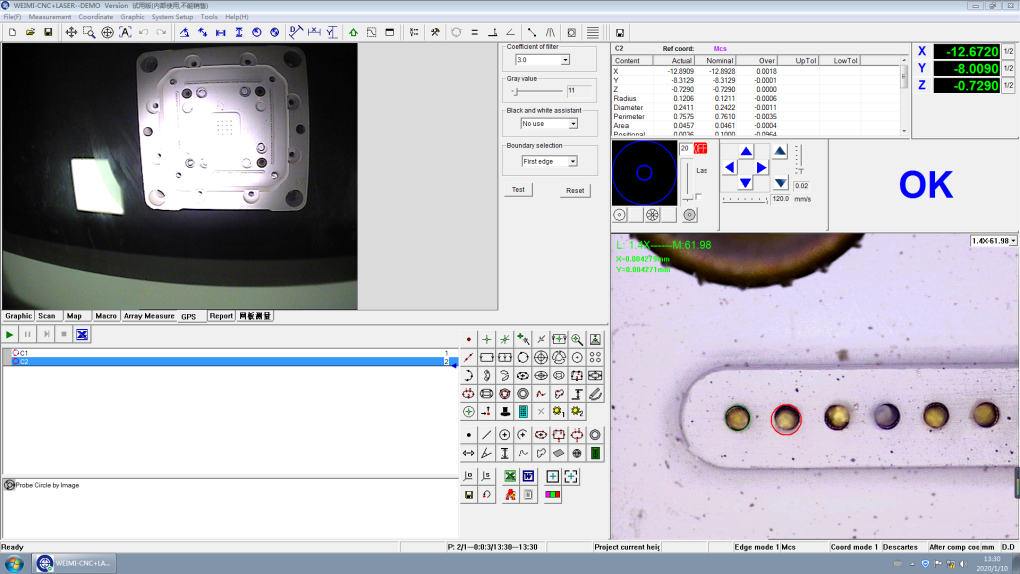

EV Measuring





EV Measuring is a professional multisensor measuring software which combined with the developers years of experience in the measuring and software research industry. The design principle is friendly operation, powerful function, high accuracy and stability, simple maintenance.
​​​​​​







​​​​

  • Excellent software architecture design and fully objectoriented, to ensure the software is stable and reliable.
  • Professional SPC statistical analysis software connected to measuring software, to realize that the data could automatically export to SPC database without manual operation.

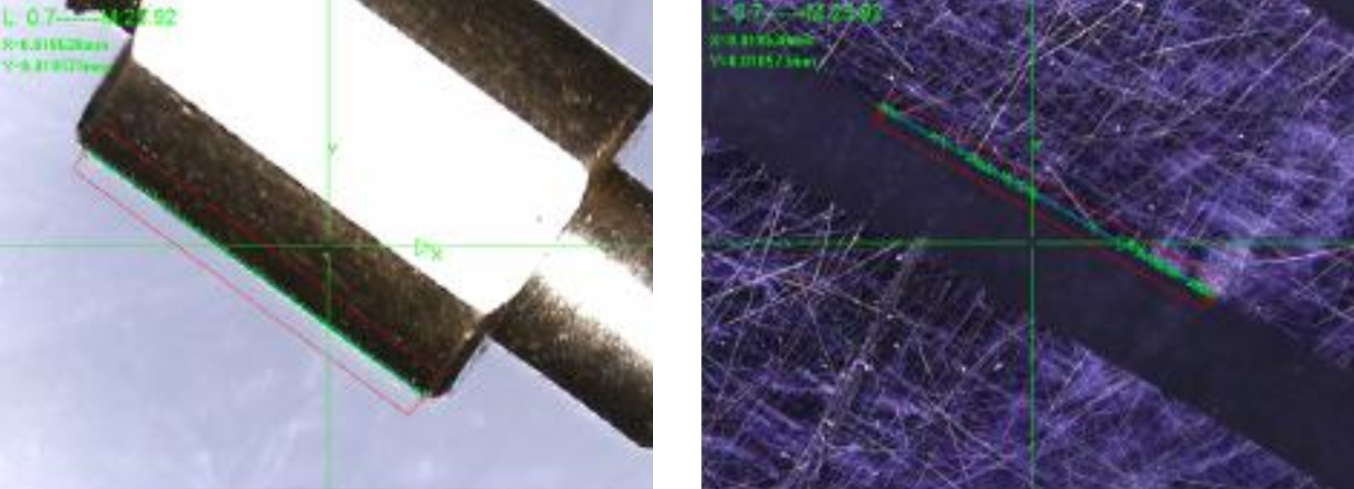

  • With powerful edge finder algorithm, which can help to get the edge of the shadow or dark image and ensure high accuracy



  • Support with multiple language, no need to install language pack and change the software which is convenient to local customers.
  • The same model of software will be permanent free to update, it can help to reduce other trouble to customer.

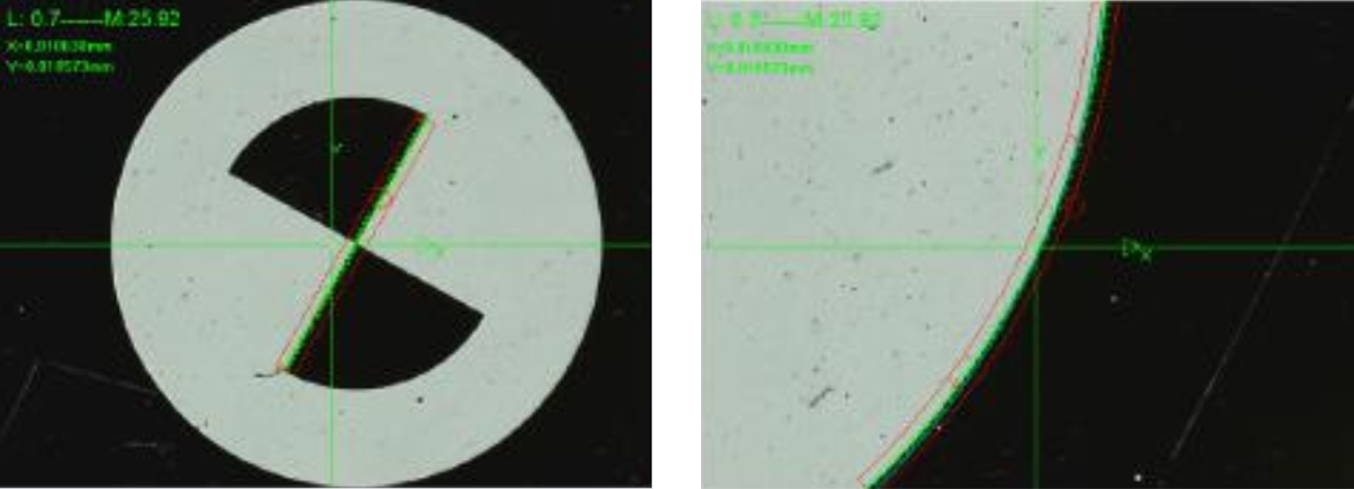

  • The software could automatically recognize and measure line, circle, arc and other elements.





Specifications

Model EVA-5040 EVA-6050 EVA-7060 EVA-8070
X/Y-Axis Travel 500 x 400mm 600 x 500mm 700 x 600mm 800 x 700mm
Glass Table 560 x 460mm 660 x 560mm 760 x 660mm 860 x 760mm
Workbench 660 x 560mm 760 x 660mm 860 x 760mm 960 x 860mm
Dimension (WxDxH) 1150 x 910 x 1920mm 1350 x 1110 x 1920mm 1550 x 1310 x 1920mm 1750 x 1510 x 1920mm
Load Capacity 50kg
Net Weight 500kg 650kg 750kg 850kg
Z-axis Travel High Precision Linear Guide, working travel 200mm
X/Y/Z-Axis Travel 0.001mm;   Optional 0.0001mm
Accuracy

X/Y-Axis Accuracy: ≤ 2.2 + L/200 (µm); Z-Axis Accuracy: ≤ 4 + L/50 (µm) [L= Length (mm)]

Repeatability 2µm

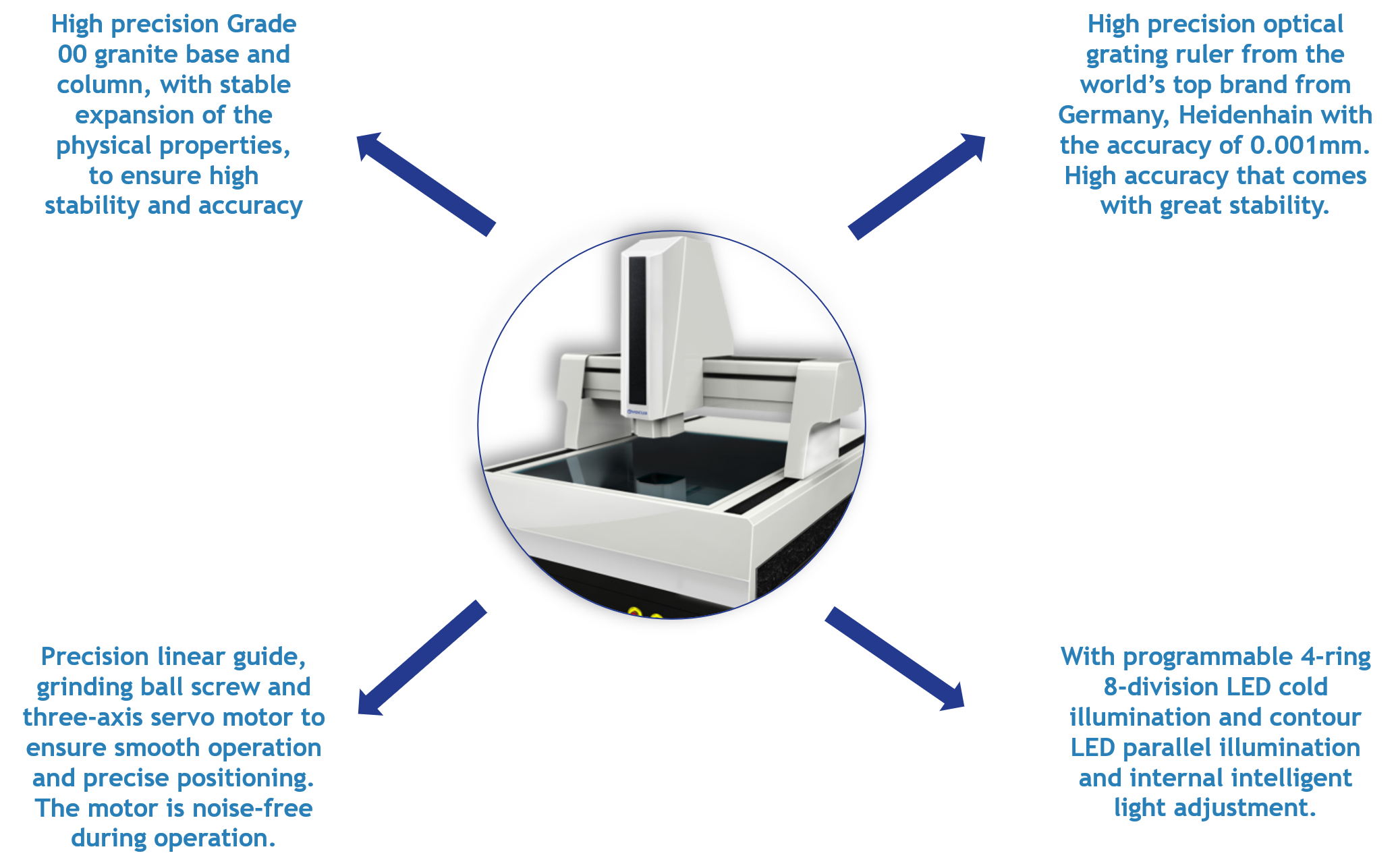

Main Structure High Stability Grade 00 Granite
Grating Structure Heidenhain (GERMANY) RSF High Precision Grating Scale, with the accuracy of 0.001mm
Motor Three-axis Servo Motor;   Optional: Joystick
Illumination System (Programmable) Surface: Stepless Adjustable 4-ring 8-division LED Cold Illumination
Contour: LED Parallel Illumination
CCD High Resolution 520TV Color CCD Camera (SONY Sensor)
Motorized Zoom Lens MT High Resolution Automatic Zoom Stereo Lens
Magnification: 0.7X ~ 4.5X;  Video Magnification: 30X ~ 225X
Working Distance 90mm
Field-of-View 10.6 - 1.6mm; Optional Lens 0.5X & 2X
Measuring Software EV Measuring
Power Supply 220V ±10% (AC) 50Hz

Model EVA-10080 EVA-120100 EVA-160120 EVA-180120 EVA-200150
X/Y-Axis Travel 1000 x 800mm 1200 x 1000mm 1600 x 1200mm 1800 x 1200mm 2000 x 1500mm
Glass Table 1060 x 860mm 1260 x 1060mm 1760 x 1360mm 2060 x 1560mm 2700 x 1560mm
Workbench 1160 x 960mm 1360 x 1160mm 1860 x 1460mm 2160 x 1760mm 2860 x 1660mm
Dimension (WxDxH) 1950 x 1810 x 1920mm 2150 x 1910 x 1920mm 2350 x 2110 x 1920mm 2350 x 2310 x 1920mm 3000 x 2510 x 1920mm
Load Capacity 50kg
Net Weight 1050kg 1250kg 1250kg 1650kg 2000kg
Z-axis Travel High Precision Linear Guide, working travel 200mm
X/Y/Z-Axis Travel 0.001mm;   Optional 0.0001mm
X/Y-Axis Accuracy X/Y-Axis Accuracy: ≤ 2.2 + L/200 (µm); Z-Axis Accuracy: ≤ 4 + L/50 (µm) [L= Length (mm)]
Repeatability 2µm
Main Structure High Stability Grade 00 Granite
Grating Structure Heidenhain (GERMANY) RSF High Precision Grating Scale, with the accuracy of 0.001mm
Motor Three-axis Servo Motor;   Optional: Joystick
Illumination System (Programmable) Surface: Stepless Adjustable 4-ring 8-division LED Cold Illumination
Contour: LED Parallel Illumination
CCD High Resolution 520TV Color CCD Camera (SONY Sensor)
Motorized Zoom Lens MT High Resolution Automatic Zoom Stereo Lens
Magnification: 0.7X ~ 4.5X;  Video Magnification: 30X ~ 225X
Working Distance 90mm
Field-of-View 10.6 - 1.6mm;   Optional Lens 0.5X & 2X
Measuring Software EV Measuring
Power Supply 220V ±10% (AC) 50Hz

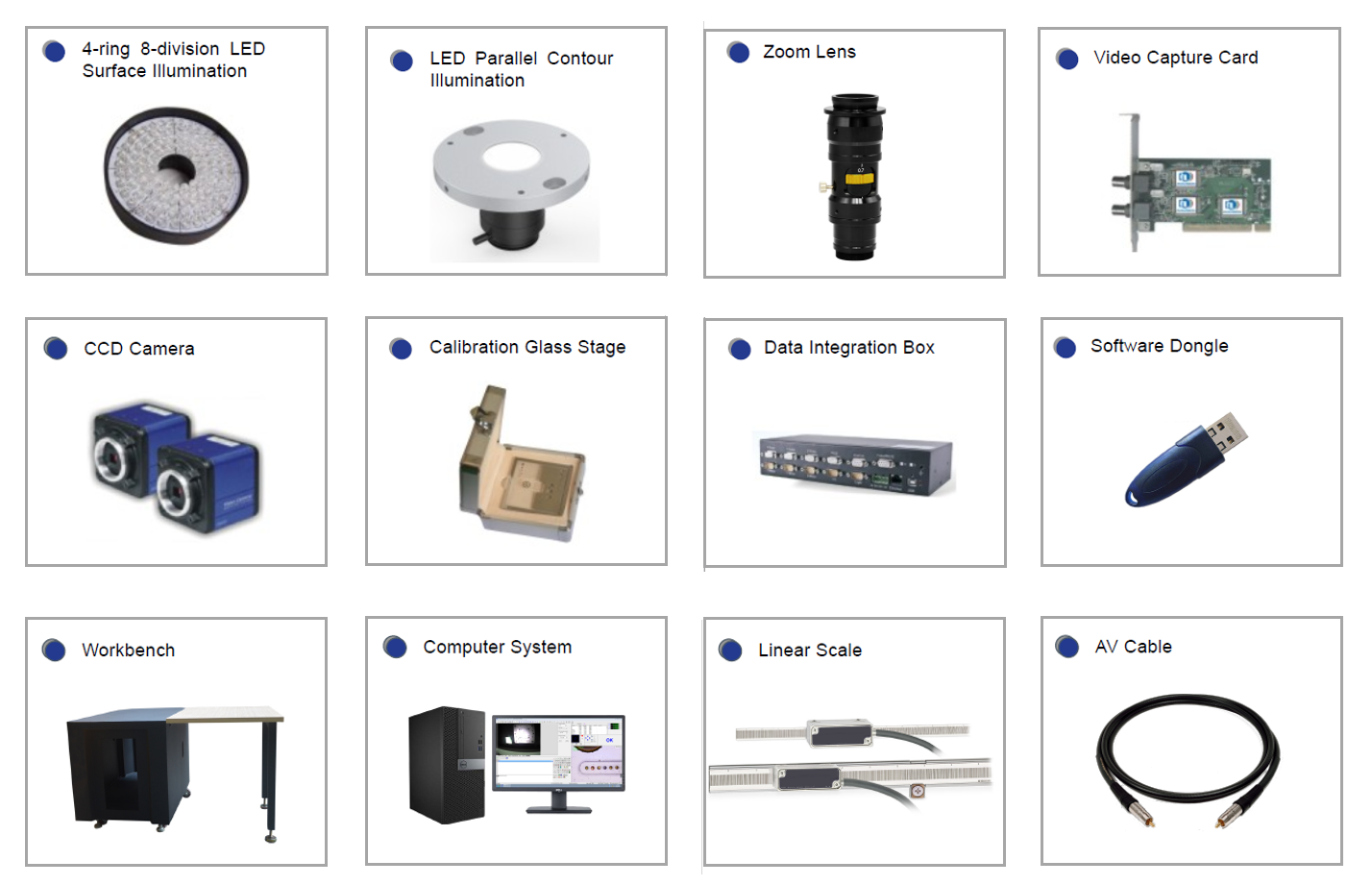

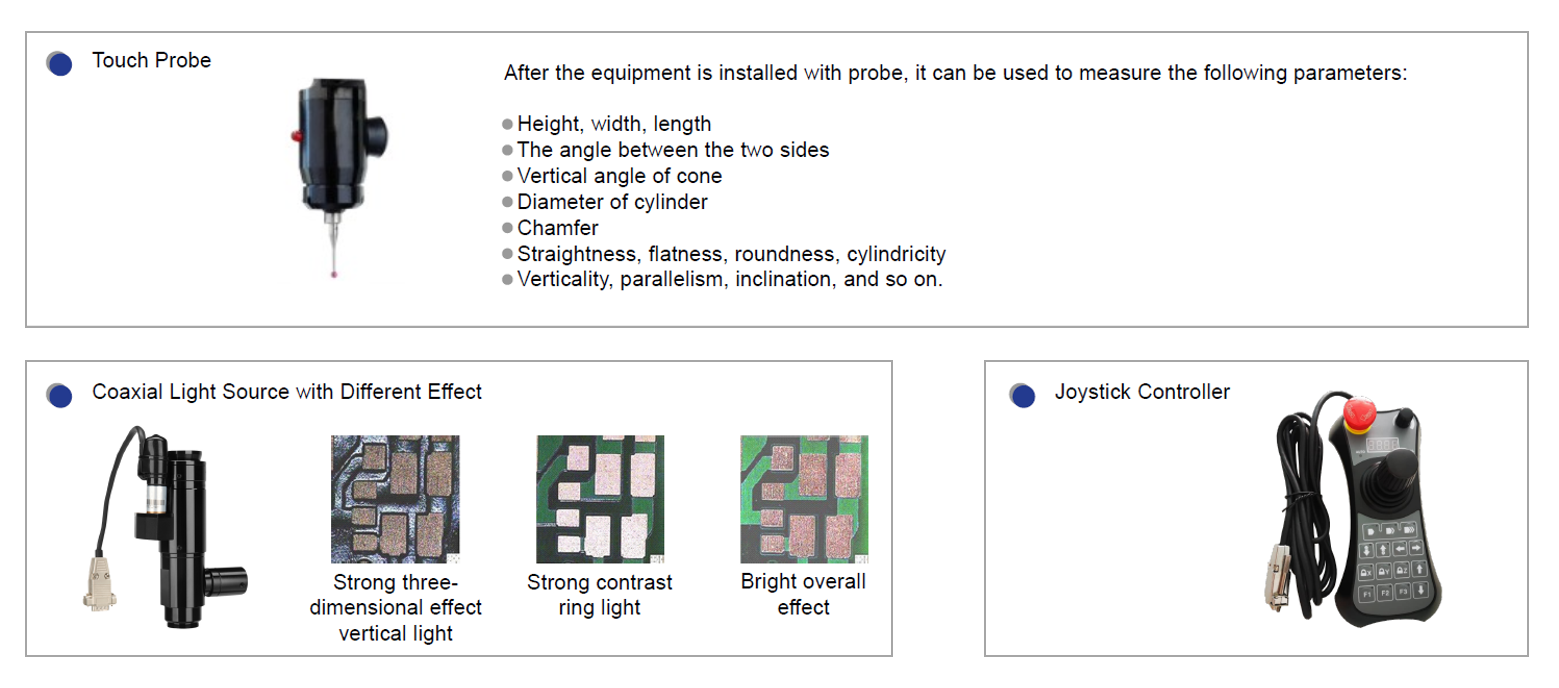

Optional Accessories
