Metallurgical Microscope
High Power Microscope for Metallurgical Purpose!

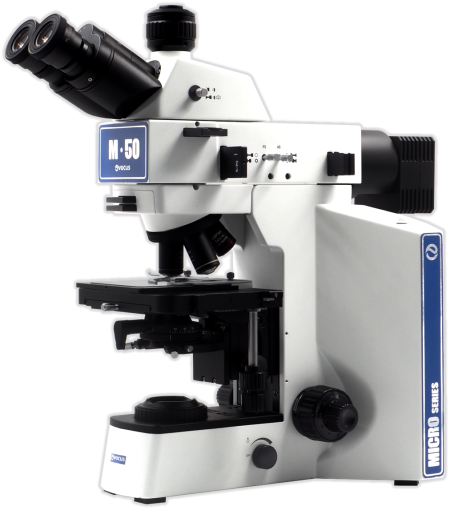

WITH excellent imaging performance and comfortable operating experience, M50 provides high cost-effective solution for metallographic analysis and industrial inspection
WITH excellent imaging performance and comfortable operating experience, M50 provides high cost-effective solution for metallographic analysis and industrial inspection
With higher color correction and better coating design, new improved LMPlan series objective enhance the image resolution and color reducibility.
.png)

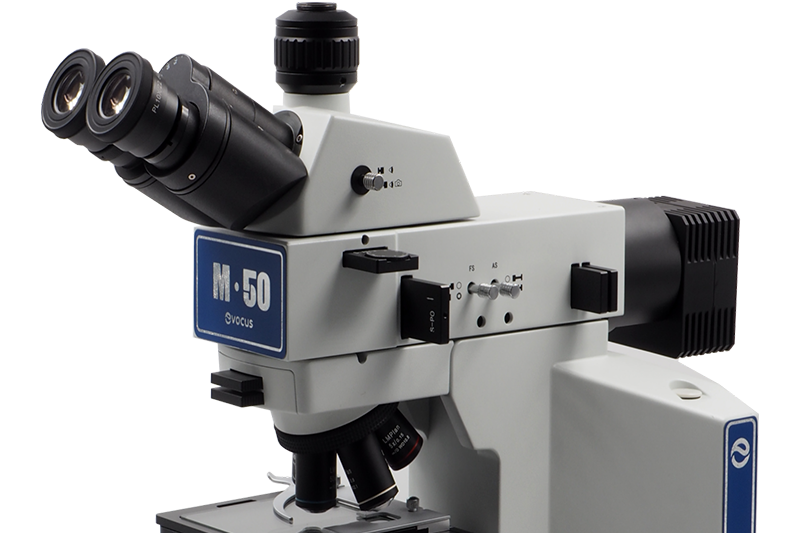

With the most suitable viewing degree, 30° inclined head holds everyone in the best working state, less tension and fatigue. You can adjust the interpupillary distance to optimum according to the scale on viewing head.

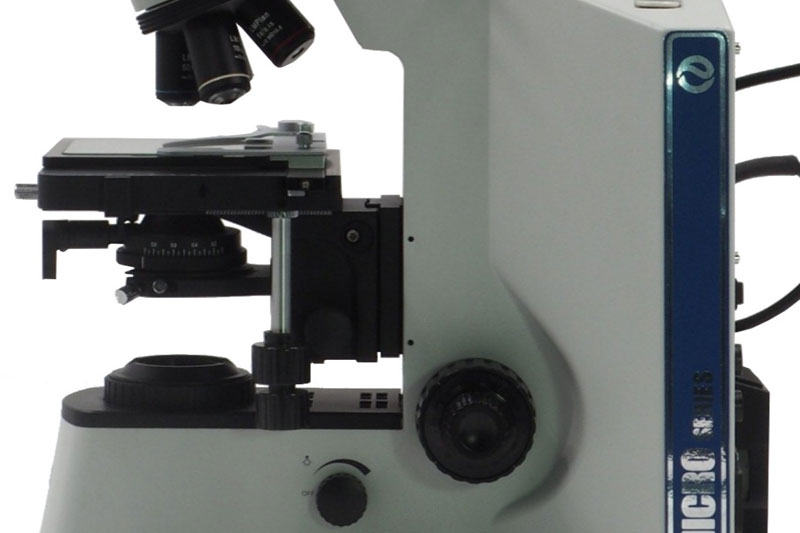

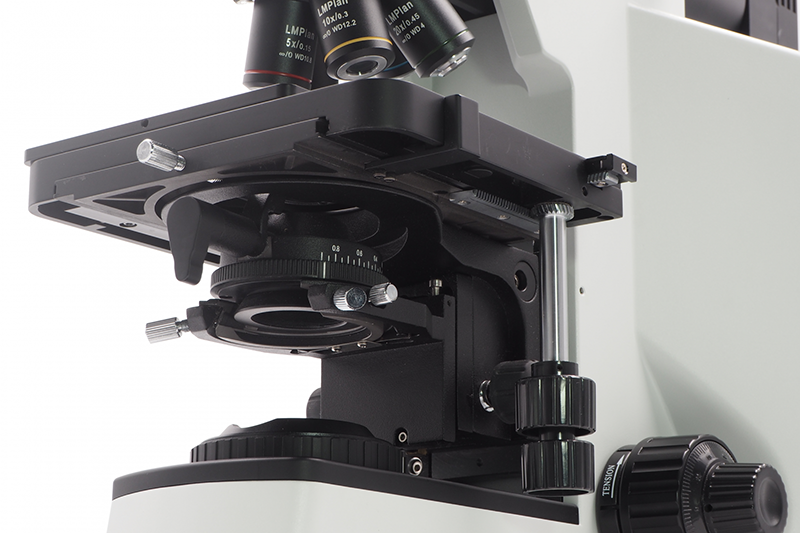

Using the outstanding condenser system, much more transmitted light can be through with bigger numerical aperture and stronger intensity.

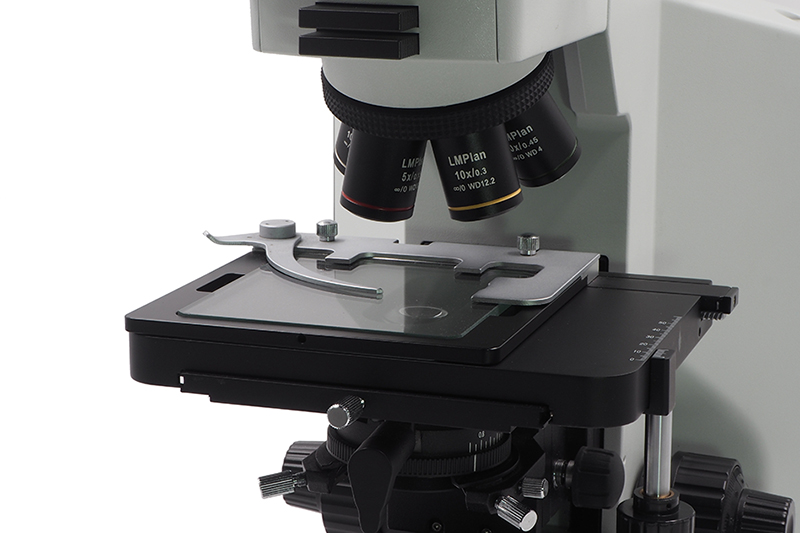

The highest sample can be tested is 28mm with transmitted & reflected frame while 78mm high sample is available with reflected frame, as the stage can be dropped 50mm by loosening the screw in the stage holder.
| Model | M50 |
| Optical System |
Infinity color corrected optical system |
| Eyepiece |
High eye-point wide field plan eyepiece PL10 x 22mm High eye-point wide field plan eyepiece PL10 x 22mm, wide reticle High eye-point wide field plan focusing eyepiece PL10 x 22mm |
| Objective |
LWD plan achromatic metallurgical objective 5X / 10X / 20X / 50X / 100X |
| Viewing Head |
30º inclined gemel binocular head, interpupillary distance: 54mm ~ 75mm left diopter ±5 adjustable 30° inclined gemel binocular head, interpupillary distance: 54mm ~ 75mm diopter ±5 adjustable splitting ratio R:T = 100:0 or 50:50 |
| Nosepiece |
Reversed quintiple nosepiece |
| Stage |
Double layer mechanical stage with X/Y coaxial adjustment, size: 175mm x 145mm, moving range: 76mm x 42mm Metal plate for transmitted frame; glass plate for transmitted & reflected frame |
| Condenser |
N.A. 0.9 swing-out achromatic condensor for transmitted frame, with center adjustable aperture iris diaphragm |
| Focus |
Transmitted & Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. |
|
Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 78mm high sample is available. |
|
| Reflected Illumination |
Wide-range voltage 100V - 240V, AC50/60Hz, reflected lamp-house with single 5W LED, warm color. Koehler illuminator with oblique light device, center adjustable field and aperture diaphragm |
| Transmitted Illumination |
Wide-range voltage 100V - 240V, AC50/60Hz, transmitted lamp-house with single 5W LED, warm color. |
