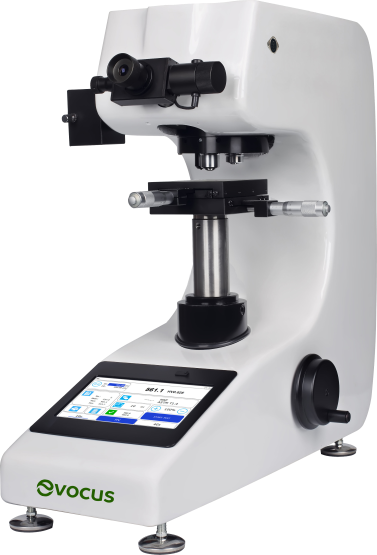

Micro Vickers Hardness Tester - MVT-1000

Touch screen digital micro vickers hardness tester with 7" large OLED touch screen and automatic measuring process








*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

With 7-inch large OLED touch screen, menu structure.


Automatic measuring process, easy operation.


High-definition optical system, the brightness of light source can be adjusted in 20 levels


With hardness value conversion function, tolerance judgment by hardness upper and lower limit.


Corner length D1 and D2 can be read directly by the system.


Measurement results can be output by the printer.


Automatic turret function: the objective and indenter can automatically switch.


Meet or exceed ISO, ASTM and JIS standards.
​​​​
​​​



Features

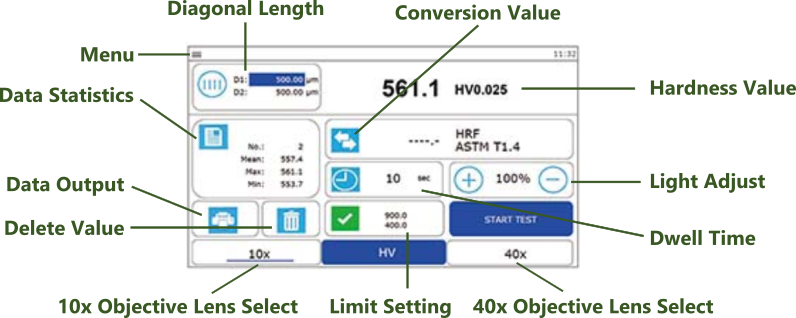

Touch Screen Functions





Specifications

Model MVT-1000
Test Force 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.9N), 1000gf (9.8N)
Conversion Scale HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Measuring Range 8 ~ 2900HV
Loading Mechanism Automatic (Loading, Dwell, Unloading)
Duration Time 5 ~ 60s (Adjustable)
Indenter Standard: HV; Optional: HK
Objective Lens 40X (Measuring), 10X (Observation) (Digital Measuring Eyepiece 10X)
Min. Measuring Unit 0.03 µm
Accuracy Conform to ISO 6507-2, JIS B7725, ASTM (E-384)
Light Source LED Light Source
Turret Automatic
Data Display OLED Touch Screen Display
X-Y Testing Table Dimension: 100 x 100mm; Max. Travel: 25 x 25mm
Max. Height of Specimen 100mm
Max. Depth of Specimen 120mm
Max. Load of Specimen 50kg
Software Option Zootos hL; Zootos hX
Power Supply Single Phase AC110V ~220V +5%, 50 - 60Hz
Overall Dimension 405 x 290 x 480mm
Net Weight About 35kg

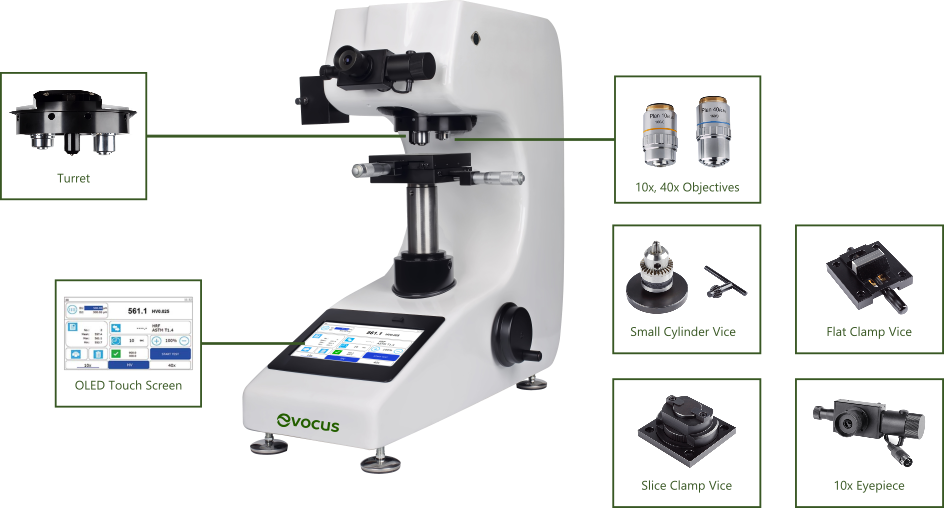

Standard Accessories
Item Quantity Item Quantity
Objective 10X, 40X 2 Testing Vice 3
Digital Measuring Eyepiece 10X 1 12V 20W Halogen Bulb 1
HV Indenter 1 Power Cable & 2A Fuse 2
Hardness Block (HV1, 700HV) 1 Paper for Thermal Printer 1
Hardness Block (HV0.2, 400HV)

1

Screwdriver & Level Vial 2
X-Y Table

1

Manual & Inspection Certificate 2
