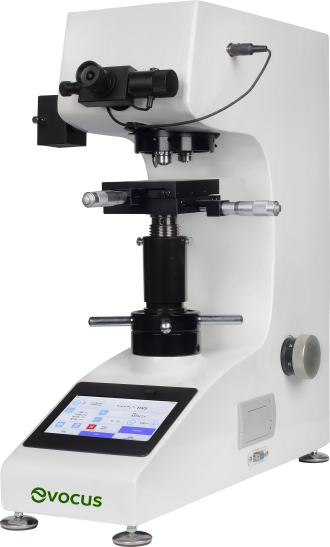

Vickers Hardness Tester - VT-5/10/30/50 Series

Touch screen digital vickers hardness tester with automatic input of D1 and D2 and motorized turret



*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement


Touch screen, full color multi-function OLED display

With motorized turret function

Back light brightness is adjustable in 20 levels with high-definition optical system

Automatic input of corner length D1 and D2

Test results and data processing can be output by printer

Test process is automatic and easy to operate

Hardness scale conversion

Meet or exceed ISO, ASTM and JIS standards.

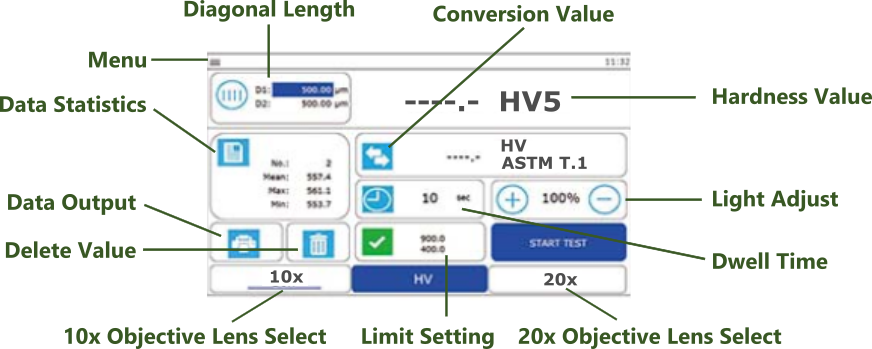

Touch Screen Functions


Model VT-5/10/30/50
Test Force VT-5: 0.3kgf (2.94N), 0.5kgf (4.9N), 1kgf (9.8N), 2kgf (19.6N), 3kg (29.4N), 5kgf (49N)
VT-10: 0.3kgf (2.94N), 0.5kgf (4.9N), 1kgf (9.8N), 3kg (29.4N), 5kgf (49N), 10kgf (98N)
VT-30: 1kgf (9.8N), 3kg (29.4N), 5kgf (49N), 10kgf (98N), 20kgf (196N), 30kgf (294N)
VT-50: 1kgf (9.8N), 5kgf (49N), 10kgf (98N), 20kgf (196N), 30kgf (294N), 50kgf (490N)
Conversion Scale Rockwell, Superficial Rockwell, Brinell
Measuring Range 8 ~ 2900HV
Loading Mechanism Automatic (Loading, Dwell, Unloading)
Turret Motorized Turret Function
Min. Measuring Unit 0.06 µm (with Objective Lens)
Objective Lens 20X (Measuring), 10X (Observation) (Digital Measuring Eyepiece 10X)
Accuracy Conform to ISO 6507-2, JIS B7725, ASTM (E-384)
Light Source LED Light Source
Data Display OLED Touch Screen Display
Data Output Built-in Printer
Max. Height of Specimen 165mm
Max. Depth of Specimen 130mm
Max. Load of Specimen 100kg
Power Supply Single Phase AC110V ~220V +5%, 50 - 60Hz
Net Weight About 45kg

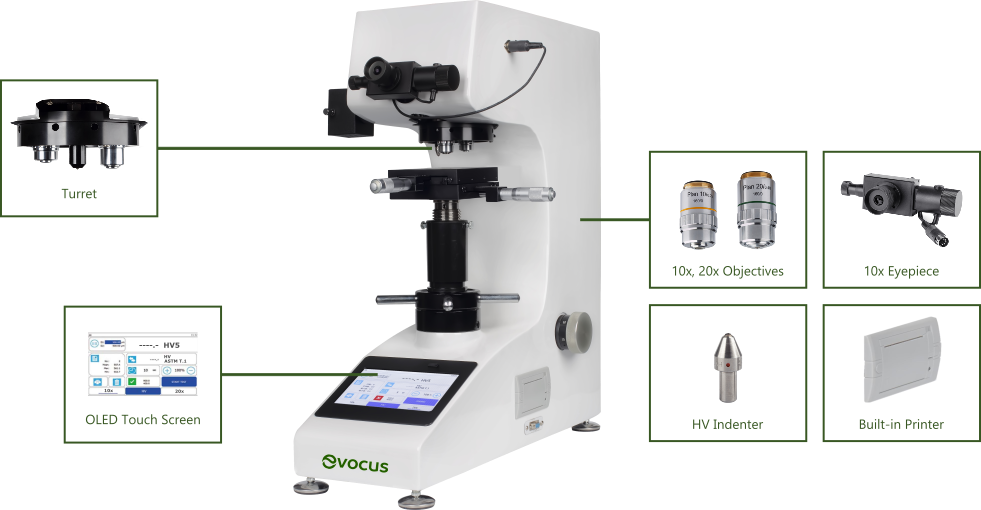

Standard Accessories
Item Quantity Item Quantity
Objective 10X, 20X 2 Testing Vice 3
Digital Measuring Eyepiece 10X 1 12V 20W Halogen Bulb 1
HV Indenter 1 Power Cable & 2A Fuse 2
Hardness Block (400HV) 1 Paper for Thermal Printer 1
Hardness Block (700HV) 1 Screwdriver & Level Vial 2
X-Y Table 1 Manual & Inspection Certificate 2
