Biological Microscope
For Educational Purpose and Lab Research!
Excellent Performance
Simple Operation
Stabilized Structure
Excellent Performance
Simple Operation
Stabilized Structure
Single 3W high power LED illuminator, close to sunlight. Under bright field observation, the background is bright and white, no need filter. So it is the best choice for brightfield observation and CCD photograph. The light source is cold and stable. It will not has temperature difference even working for long time and longer life with lower power consumption. Philips 6V20W Halogen illuminator. Block-style mirror. If no power supply, it can collect natural light.

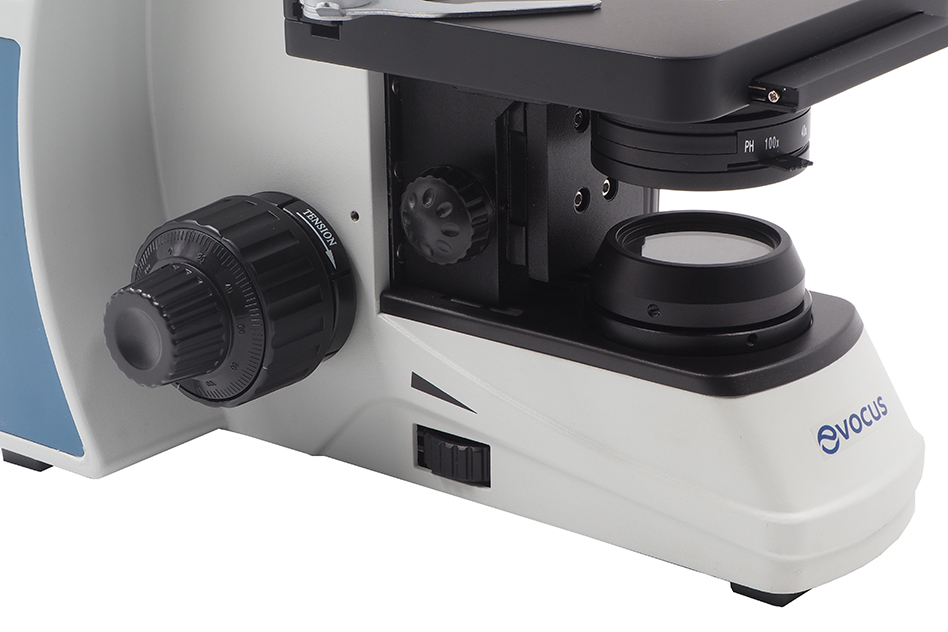

For the new dimming system, adjusting the lighting close to a straight line from low to high brightness dimming. It keeps sensitive and effective and overcome the jump phenomenon occurs when traditional microscope dimming the brightness and avoid the glare instantaneous cause dizziness. The new design is also conducive to the operation of the students and protection of dimming knob will not be damaged.

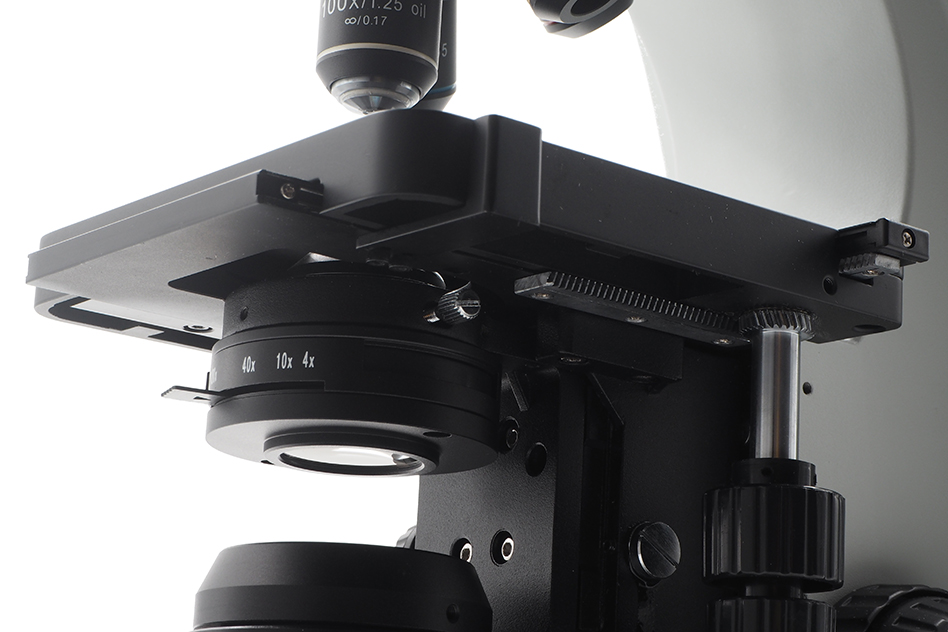

There are special locking screws for eyepieces to prevent people from removing the eyepiece or causing accidental damages of falling out of the eyepiece when got dust cover. Condenser using a dedicated set screws fixed, undesirable, also to avoid damage. Focus limit has the mechanical screws, and default before sale, which ensures accurate focus of the samples, but also protect the slide from damaged.

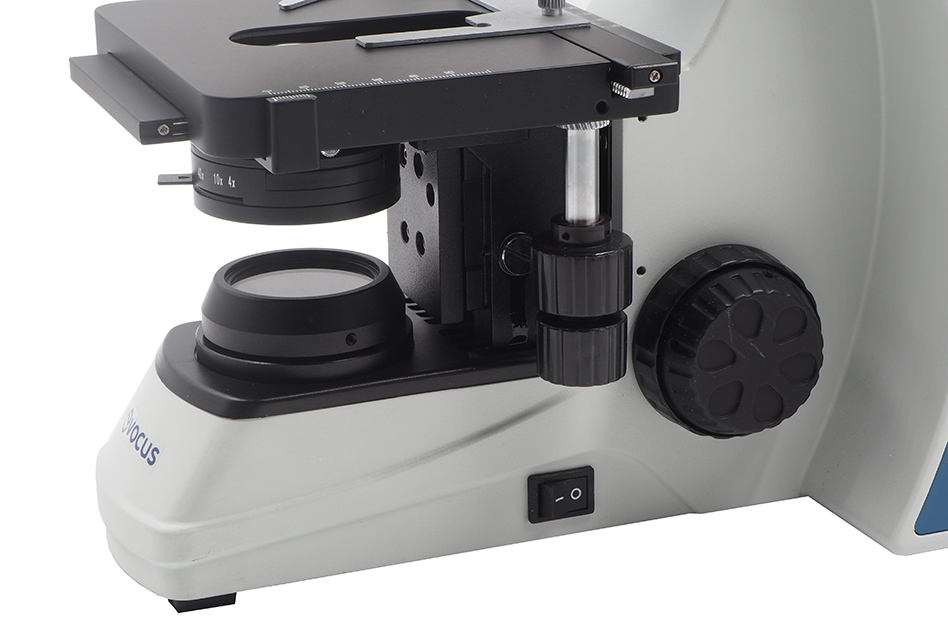

T-shaped base and classic curve flank makes B30 excellent stability and rigid compact design. The overall shape compact and beautiful and save the lab space. The handle on the back of the main body guarantee it safety when moving or lifting the microscope.

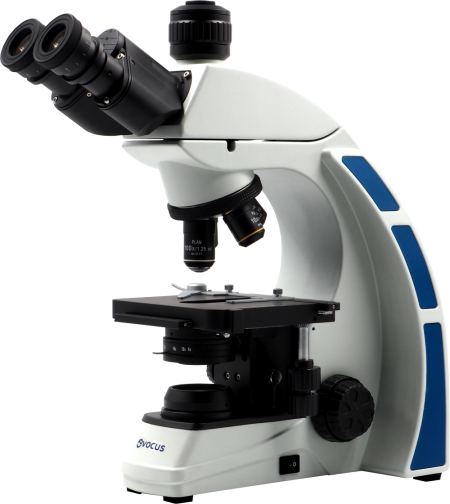

| Model | B30 |
| Optical System | Infinity color corrected optical system |
| Eyepiece |
PL10X/18T, FN18mm with adjustable diopter PL10X/20T, FN20mm with adjustable diopter |
| Objective | OIP Infinity Plan Achromatic objectives |
| Viewing Head |
30° Inclined Gemel Binocular Head 30° Inclined Gemel Trinocular Head, Light Splitting ratio R:T = 8:2 30° Inclined Gemel Digital Head (3 mega. Pixel) |
| Nosepiece |
Reverse quadraple nosepiece Reverse quintiple nosepiece |
| Stage | 140 x 132mm mechanical stage, move range 76 x 50mm |
| Condenser | N.A. 1.25 Koehler illuminatory condenser (with socket for phase contast and darkfield accessories) |
| Focus | Coaxial focus system with tension adjustable, coarse: 25mm per rotation, with upper limit and tightness adjustment |
| Illuminator | 100C - 240V flucturate of voltage, single high brightness 3W LED with continuous intensity control |
| 100C - 240V flucturate of voltage, Philips 6V/20W halogen bulb with continuous intensity control |
