Automatic test force control

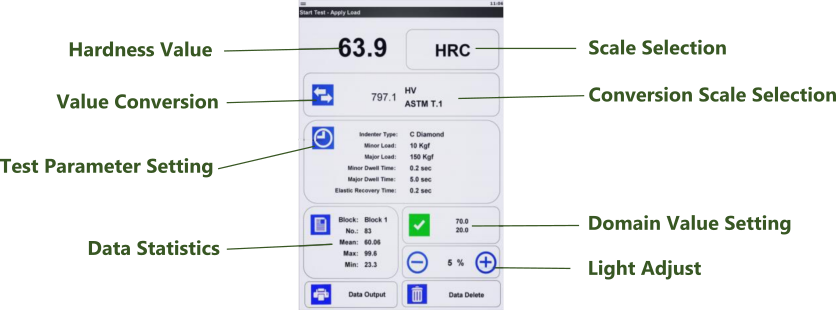

Digital, multi-function OLED touch screen
Electric load; automatic loading and unloading
15 rockwell scales, coversion to vickers, brinell
Meet or exceed JIS B7726, ISO 6508-2, ASTM E18 and GB/T230.2, standards
PC connectivity and built-in printer for data output
| Model | RT-150 |
| Preliminary Testing Force | 10kgf (98.07N) |
| Testing Force | 60kgf (588N), 100kgf (980N), 150kgf (1471N) |
| Rockwell Scale | HRA, HRB, HRC, HRD, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Hardness Measuring Range | HRA: 20 - 88, HRB: 20 - 100, HRC: 20 - 70, HRD: 40 - 77 |
| HRF: 60 - 100, HRG: 30 - 94, HRH: 80 - 100, HRK: 40 - 100 | |
| HRL: 50 - 115, HRM: 50 - 115, HRR: 50 - 115 | |
| HRP: 50 - 115, HRS: 50 - 115, HRV: 50 - 115 | |
| Test Force Control | Electric Load: Automatic Loading and Unloading |
| Dwell Time | 0 ~ 60s |
| Resolution | 0.1HR |
| Data Output | Built-in Printer, USB |
| Max. Height of Specimen | 170mm |
| Distance Depth of Specimen | 165mm |
| Power Supply | Single Phase AC110V ~220V +5%, 50 - 60Hz |
| Overall Dimension | 520 x 240 x 700mm |
| Net Weight | About 80kg |
| Item | Quantity | Item | Quantity |
| Steel Ball Indenter | 1 | Hardness Block HRB90 | 1 |
| Diamond Indenter | 1 | Hardness Block HRC20 | 1 |
| Ø 150mm Testing Vice | 1 | Hardness Block HRB60 | 1 |
| Ø 58mm V-shape Anvil | 1 | Power Cable | 1 |
| Ø 58mm Testing Vice | 1 | Product Certificate | 1 |
| Paper for Printer | 1 | Manual & Warranty Card | 2 |
