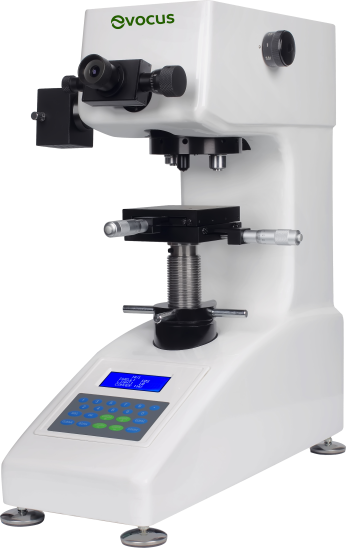

Micro Vickers Hardness Tester - MVD-1000

Manual digital micro vickers hardness tester with LCD display and automatic measuring processes





*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement





Automatic measuring process, easy operation.


With LCD display, the hardness scale HV or HK can be selected.


High-definition optical system, the brightness of light source can be adjusted in 20 levels


Corner length D1 and D2 can be read directly by the system. directly by the system.


Measurement results can be output by the printer.


Meet or exceed ISO, ASTM and JIS standards.



Features





Specifications

Model MVD-1000
Test Force 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.9N), 1000gf (9.8N)
Conversion Scale HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Measuring Range 8 ~ 2900HV
Loading Mechanism Automatic (Loading, Dwell, Unloading)
Duration Time 5 ~ 60s (Adjustable)

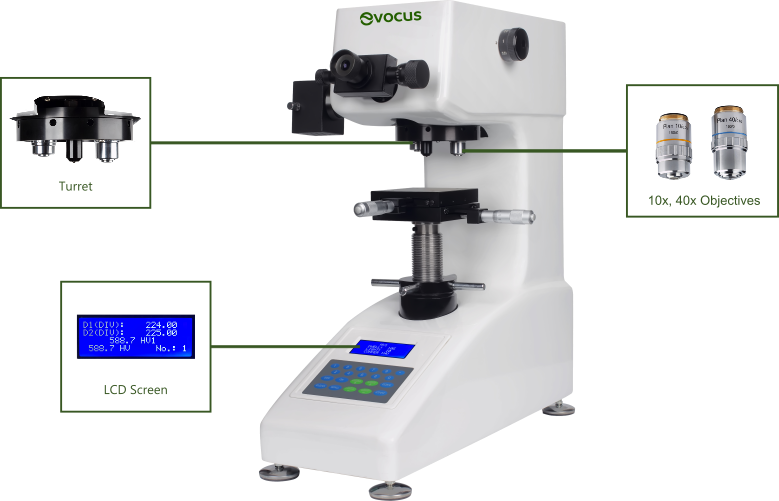

Objective Lens 400X (Measuring), 100X (Observation)
Min. Measuring Unit 0.03125 µm
Turret Manual
Data Display Digital LCD Screen Display
X-Y Testing Table Dimension: 100 x 100mm; Max. Travel: 25 x 25mm
Max. Height of Specimen 100mm
Distance of Indenter to Outer Wall 120mm
Power Supply AC220V +5%, 50 - 60Hz
Overall Dimension 405 x 290 x 480mm
Net Weight About 35kg



Standard Accessories
Item Quantity Item Quantity
Objective 10X, 40X 2 Testing Table 3
Eyepiece 10X 1 12V 20W Light Bulb 1
HV Indenter 1 Power Cable & 2A Fuse 2
Weight 6 Paper for Thermal Printer 1
Rod of Weight 1 Screwdriver & Level Vial 2
Hardness Block (HV1, HV0.2) 2 Manual & Inspection Certificate 2
XY Coordinate Table 1
