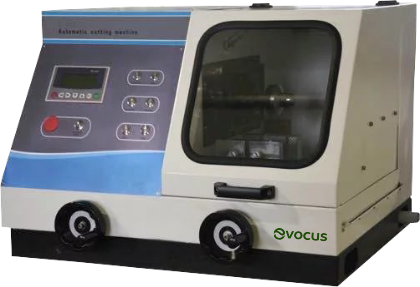

Manual/Automatic Cutting Machine - Trinita Series

Large space Cutting Machine for Rectangle and Large Sample (Y-axis Movement)









*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement



Big cutting room and movable T-shape work table


Able to cut rectangle and large specimens


Manual and automatic cutting mode can be switched at will


Automatic withdraw function after cutting session is finished



Specifications

Model TRINITA-80Y
Display LCD with High Resolution Back-lit Dot Matrix
Cutting Disc Rotating Speed (Sand
Wheel Rotating Speed)
2100rpm
Max. Cutting Diameter 80mm
Cutting Wheel Size 350 x 2.5 x 32mm
Axis Movement Y-axis Movement Automatic
Max. Moving Travel 125mm
Max. Working Table Travel 275mm
Power Supply Three Phases, 380V, 50Hz
Motor 2.5kW
Dimension 835 x 850 x 620mm
Weight 25kg
