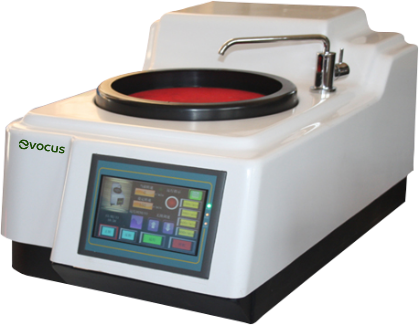

Grinding and Polishing Machine - Kashima Series

Touch screen single/double disc metallographic specimen grinding and polishing machine with stepless speed changing







*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement​​​​



Touch screen operation which is equipped with single disc


Features stepless speed changing grinding and polishing


Realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing


Ideal specimen preparing instrument for using in factories, scientific research institutes, and laboratories of colleges


Available in Dual Disc Mode - Kashima-2T



Specifications

Model KASHIMA-1T KASHIMA-2T
Grinding/Polishing Disc Diameter Ø200mm (250mm is optional)
Grinding Disc Rotating Speed 99 - 1000rpm (Stepless Speed changing) or 150/300/600/800rpm (Four-level Constant Speed)
Dimension 800 x 440 x 360mm 870 X 760 X 560mm
Net Weight 41kg 55kg
Operating Voltage AC 220V, 50Hz
