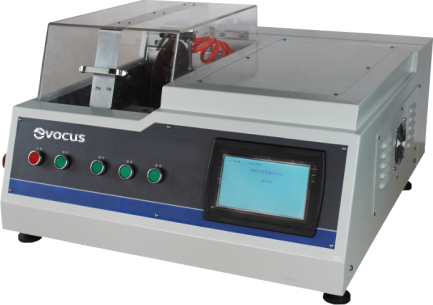

Precision Cutting Machine - Sendai Series

High precision speed specimen cutting machine, capable to cut various hard metals









*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement



Precision Cutting without Deformation


Airtight Security Cutting Room


Digital Operation Panel which can Display and Change Cutting Speed.


Adopts High-Power Servo Motor Drive, High Locating Accuracy, Large Range of Speed, High Cutting, Power, Internal Circulation Cooling
System and Preinstall Feed Speed







Specifications

Model SENDAI-5000
Feed Speed 0-30mm/min (Adjust size 0.01mm)
Spindle Speed 300 - 5000rpm
Maximum Stroke Y-axis 200mm
Cutting Disc Specification 200 x 1 x 32mm
Maximum Cutting Diameter 60mm
The Largest Travel Y-axis 200mm
Cutting Power 110W
Dimension 700 x 720 x 410mm
Voltage 220V, 50/60Hz
