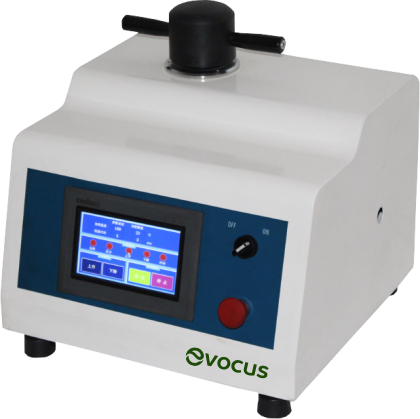

Mounting Machine - Machida Series

Automatic Metallographic Sample Mounting Press used to mosaic small specimens, specimens in irregular shapes, or specimens which are not easy to take up.





*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement





Mosaic small specimens, specimens in irregular shapes, or which are not easy to take up


Facilitate the grinding and polishing operations of the specimens


Machine is heated, and intensified with pressure automatically


Automatic operation for faster and easier job







Specifications

Model Machida-1T Machida-2T
Diameter of Specimen Ø22mm, Ø30mm, Ø45mm
Cooling Method \ Water Cooling
Heater 220V, 650W
Electric Power 1000W
Power Supply Single Phase, 220V, 50Hz
Dimension 380 x 350 x 420mm
Net Weight 50kg
