Evocus Manual & Automatic Cutting Machine (CutPro100DH/100ZH/100SH Series)
CutPro100 Series metallographic cutting machines designed for stable, durable and efficient sample cutting.
Three cutting modes, electromagnetic safety protection, stainless-steel cutting chamber and maximum cutting capacity up to 100 mm.
CutPro100 Series

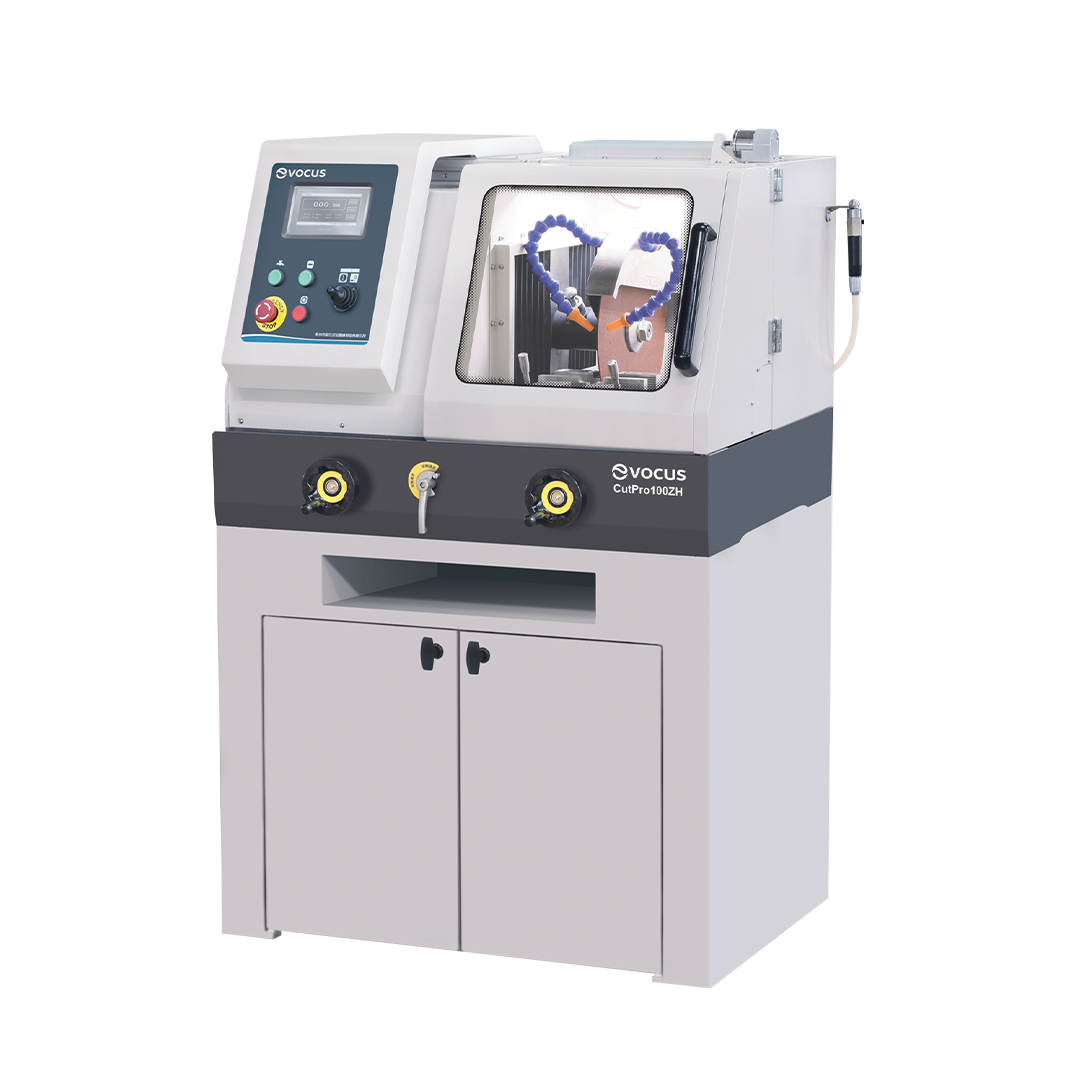

The CutPro100 Series is available in three configurations: CutPro100DH, CutPro100ZH and CutPro100SH. All three models provide a 3 kW motor, 100 mm maximum cutting capacity, stainless-steel cutting chamber and three cutting modes: pulse, flat push and manual.
| Model | Key Configuration |
|---|---|
| CutPro100DH | Electromagnetic safety lock, three cutting modes, stainless-steel cutting chamber and maximum cutting diameter of 100 mm. |
| CutPro100ZH | Touch screen, electromagnetic safety lock, three cutting modes, stainless-steel cutting chamber and maximum cutting diameter of 100 mm. |
| CutPro100SH | Touch screen, electromagnetic safety lock, three cutting modes, stainless-steel cutting chamber, maximum cutting diameter of 100 mm and adjustable 50 mm spindle lift. |
Three Cutting Modes
Pulse Cutting
One of the three selectable cutting modes available across the CutPro100 Series.
Flat Push Cutting
Provides an additional cutting mode for different metallographic sample cutting requirements.
Manual Cutting
Allows manual cutting operation when direct operator control is required.
100 mm Cutting Capacity
All three CutPro100 models support a maximum cutting diameter of 100 mm.
Machine Design & Key Features
Electromagnetic Safety Lock
A patented electromagnetic safety lock prevents the machine from starting when the cutting chamber door is not closed. During cutting, the chamber door cannot be opened, helping protect the operator.
Open Side Door of the Cutting Chamber
The side door expands the available working space during operation and makes thorough cleaning of the cutting chamber easier after cutting.
Extended Workpiece Expansion Window
The detachable expansion window makes it easier to insert and secure extended workpieces while helping prevent cutting fluid from splashing out during cutting.
Hidden Water Tank Cabinet
The cooling water tank is positioned inside the cabinet to reduce the machine footprint. The threshold-less reinforced cabinet structure allows access without moving the water tank and helps provide a strong, stable structure.
Extra-Large Transparent Observation Window
The large transparent window allows the operator to observe cutting conditions from multiple angles, identify issues promptly and help maintain cutting quality.
Side-Pull Cutting Chamber Door
The side-pull chamber door is easy to open and close, provides maximum operating space and helps prevent residual cutting fluid on the door from flowing outside.
Open Storage Compartment
The open compartment provides convenient storage for cutting blades, wrenches and other items. Its doorless design makes tools easy to access during operation.
Evocus Special Cutting Disc
The metallographic cutting disc developed by Evocus is designed for improved cutting performance and durability while helping protect the cutting machine motor.
Quick Clamping Jaws
The quick clamping jaws are designed to accurately position and rapidly clamp different metallographic sample materials. The system features a simple structure, fast clamping speed, convenient operation and long service life, helping save preparation time and effort.
Whether cutting large or small workpieces, or simple or complex specimens, the quick clamping jaw can help address tail burrs remaining after cutting.
Fixture & Workholding Options
Slender Shaft Clamp
Workholding option for slender shaft-type specimens.
Vertical Rotating Fixture
Fixture option for vertically oriented and rotational positioning requirements.
Vertical Clamp
Vertical clamping option for suitable metallographic workpieces.
X-Axis Traversing Table
Traversing table option for X-axis workpiece positioning.
Main Parameters
| Parameter | CutPro100DH | CutPro100ZH | CutPro100SH |
|---|---|---|---|
| Motor Power | 3 kW | 3 kW | 3 kW |
| Cutting Blade Speed | 2200 r/min | 2200 r/min | 2800 r/min |
| Illumination | LED ceiling light | LED ceiling light | LED ceiling light |
| Noise | <75 dB | <75 dB | <75 dB |
| Cooling Water Tank Capacity | 60 L | 60 L | 60 L |
| Cutting Disc | 350 × 2.5 × 32 mm | 350 × 2.5 × 32 mm | 350 × 2.5 × 32 mm |
| Maximum Cutting Capacity | 100 mm | 100 mm | 100 mm |
| Removable Bezel | Yes | Yes | Yes |
| Workbench (L × W) | 280 × 330 mm | 280 × 330 mm | 280 × 330 mm |
| Spindle Lifting | No | No | Adjustable 50 mm |
| Overall Dimensions (L × W × H) | 960 × 855 × 1550 mm | 960 × 855 × 1550 mm | 960 × 855 × 1550 mm |
| Weight | 360 kg | 360 kg | 360 kg |
High-Capacity Metallographic Cutting
The CutPro100 Series combines a 100 mm maximum cutting capacity with robust workholding, safety protection, practical chamber access and multiple cutting modes. CutPro100SH further adds an adjustable 50 mm spindle lift, while CutPro100ZH and CutPro100SH incorporate touch-screen operation.
