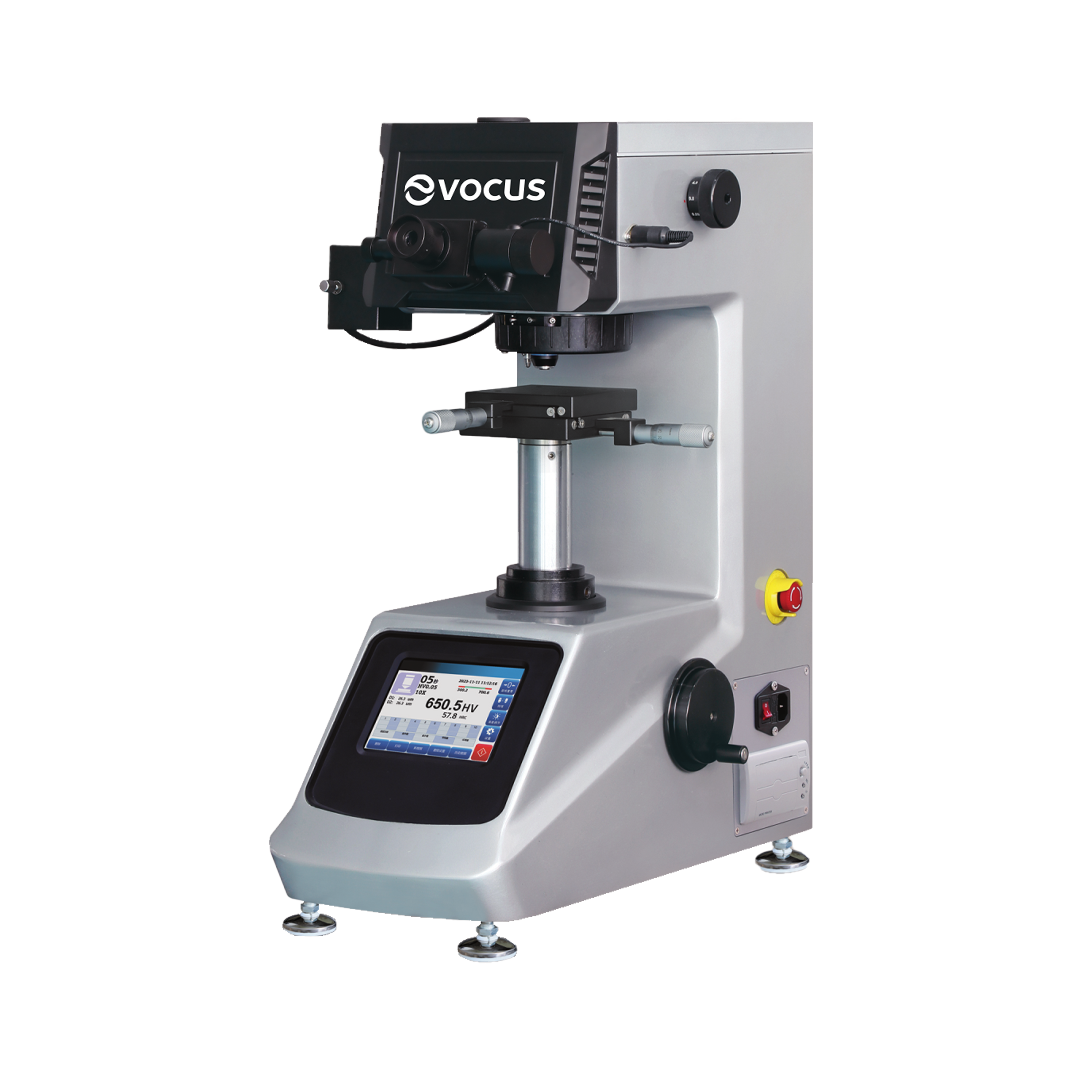

Evocus Digital Micro Vickers Hardness Tester (Micronix1000 Series)
Digital Micro Vickers hardness tester featuring a brand-new operating system and interconnection functions for convenient hardness testing and data handling.
Digital Micro Vickers Hardness Tester
Micronix1000 combines Micro Vickers hardness testing with convenient operator functions, connectivity and test-data management.
The machine measures approximately 525 × 330 × 620 mm. ZOOTOS (Korea) hardness measurement software can be used, and the system supports an upgradable automatic workbench when automatic test software is provided.
Connectivity & Data Functions
Bluetooth Connection
The hardness tester has a built-in Bluetooth module, which can connect to a computer or mobile phone via Bluetooth to export data.
Data Printing Method
Test data can be printed through the built-in printer or through a Bluetooth printer connected to the tester's built-in Bluetooth module.
Three Standard Hardness Conversions
The system provides national, European and American hardness conversion standards. Once selected, conversion results and test results are displayed at the same time. Tensile-strength conversion can be selected within the national standard.
Wired Connection Interface
Network, USB and RS-232 interfaces support test-data transmission and export. An automatic-workbench interface also allows the tester to be upgraded later to an automatic Vickers hardness tester.
500 Sets of Test Data Storage
The system stores 500 sets of test data, with the newest test point displayed first. Each set includes average value, test force and test date.
Six Hardness Correction Functions
Six correction options cover concave and convex cylindrical surfaces at two diagonal orientations, plus concave and convex spherical surfaces. For non-planar surfaces, select the corresponding correction and enter the diameter for automatic correction.
Qualified Hardness Range Setting & Alarm
A Vickers hardness qualification range can be set. Results outside the selected hardness range are displayed in red to indicate an unqualified result.
Multiple Data Upload Modes
Upload format can be ASCII character or protocol-value format. Data can be uploaded by individual point or by group, with detailed or simplified information.
Wired & Wireless Connectivity
Bluetooth
Connect to a computer or mobile phone for data export, or connect to a Bluetooth printer for test-data printing.
Network Port
Connect the hardness tester to a LAN and transmit test data to a computer within the network.
USB Interface
Insert a USB drive to export test-database data. The export format is Excel.
RS-232 Interface
Connect the tester to a computer through RS-232 to export test data.
Upgradeable Automatic Workbench
The automatic-workbench interface allows Micronix1000 to be upgraded later to an automatic Vickers hardness tester. An automatic workbench can be connected to the interface and operated using automatic Vickers software.
ZOOTOS (Korea) Hardness Measurement Software can be used with the tester.
Hardness Correction for Non-Planar Surfaces
The system provides six hardness-correction options for non-planar test surfaces:
Concave Cylindrical Surface
Two correction configurations: diagonal parallel to the cylinder axis, or diagonal at 45° to the cylinder axis.
Convex Cylindrical Surface
Two correction configurations: diagonal parallel to the cylinder axis, or diagonal at 45° to the cylinder axis.
Concave Spherical Surface
Correction is available for concave spherical test surfaces.
Convex Spherical Surface
Correction is available for convex spherical test surfaces.
Main Technical Parameters
| Parameter | Micronix1000 |
|---|---|
| Hardness Scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Force | 0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807 N 10, 25, 50, 100, 200, 300, 500, 1000 gf |
| Test Force Selection Method | Turn the test force variable load knob to select the test force |
| Load Control | Automatic (load / retain / unload) |
| Keep Time | 0–99 seconds adjustable |
| Test Mode | HV / HK |
| Range of Hardness Measurement | 5–3000 HV |
| Maximum Height of Specimen | 110 mm |
| Depth of Throat | 110 mm |
| Optical System | Objective lens: 10× observation, 40× measurement Total magnification: 100× observation, 400× measurement Measuring range: 0–200 μm Graduation value: 0.03 μm |
| XY Coordinate Test Bench | Size: 100 × 100 mm Stroke: 25 × 25 mm Graduation value: 0.01 mm |
| Light Source | 12 V / 20 W |
| Light Source Brightness | PWM dimming |
| Energy Saving Mode | The time can be set to automatically enter standby mode |
| Power Supply | 220 V / 50 Hz |
| Dimensions | 525 × 330 × 620 mm (L × W × H) |
| Weight | 36 kg |
Connected Micro Vickers Hardness Measurement
Micronix1000 combines digital Micro Vickers hardness testing with Bluetooth, network, USB and RS-232 connectivity, test-data storage, hardness correction, qualification-range monitoring and future automatic-workbench upgrade capability.
