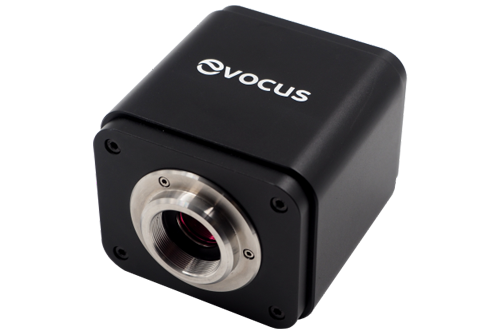

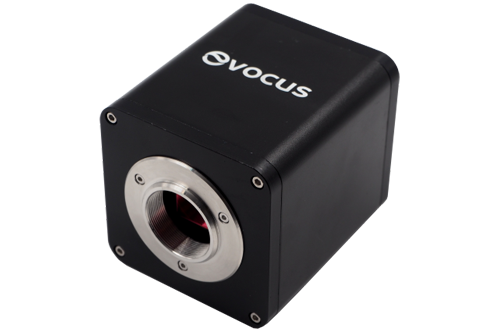

Digital HDMI (Full HD) Microscope Camera with Auto-Focus and Measurement Function

All in 1 (HDMI + USB + SD Card) C-mount camera with high sensitivity CMOS Sensor
Built-in Auto-Focus function
Built-in mouse control
Built-in image capture & video record to SD card
Ultra-Fine color engine with perfect color reproduction capability
CNC shell molding design

Model	EVS-H10.001
Sensor	CMOS
Sensor Size	1/2.8"
Focusing	Automatic/Manual
Scanning	Progressive
Adjustable	White balance, Brightness, Sharpness
Video	1080P, 60fps/50fps
Interface	HDMI
Optical Port	Standard C-Mount
Dimension	66 x 66 x 80mm
Power Supply	DC 5V
Operational Temperature	0 ~ 50ºC

Download Product Catalog PDF

HDMI + USB CMOS Industrial Digital Camera

All in 1 (HDMI + USB + SD Card) C-mount camera with high sensitivity CMOS Sensor
Simultaneous HDMI & USB output
Built-in mouse control
Built-in image capture & video record to SD card
Ultra-Fine color engine with perfect color reproduction capability
CNC shell molding design

Model	EVS-H10.004
Sensor & Size	1080P Sony IMX236 (C) 1/2.8" (5.38 X 3.02)
Pixel (µm)	2.8 x 2.8
G Sensitivity Dark Signal	510 mv with 1/30s 0.15 mv with 1/30s
FPS/Resolution	60 @ 1920 x 1080 (HDMI) 30 @ 1920 X 1080 (USB)
Binning	1 x 1
Exposure	0.1ms ~ 999ms

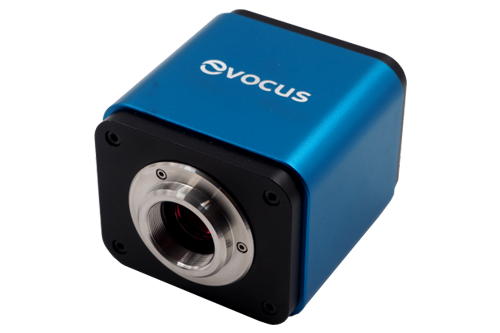

Digital HDMI (Full HD) Microscope Camera with Measurement Function

All in 1 (HDMI + USB + SD Card) C-mount camera with high sensitivity CMOS Sensor
Simultaneous HDMI & WiFi output
Built-in mouse control
Built-in image capture & video record to SD card
Ultra-Fine color engine with perfect color reproduction capability
CNC shell molding design

Model	EVS-H10.002
Sensor & Size	1080P/2M/Sony IMX185 (C) 1/1.9" (7.20 X 4.05)
Pixel (µm)	3.75 x 3.75
G Sensitivity Dark Signal	1120 mv with 1/30s 0.15 mv with 1/30s
FPS/Resolution	60 @ 1920 x 1080 (HDMI) 25 @ 1920 X 1080 (WiFi)
Binning	1 x 1
Exposure	0.06ms ~ 918ms

Download Product Catalog PDF

Opticam Full HD High Sensitivity USB Camera

Standard C-Mount camera with Sony Exmor (CMOS Sensor)
With hardware high resolution and sensitivity
USB2.0 interface ensuring high speed data transmission
Ultra-Fine color engine with perfect color reproduction capability

Model	EVS-U30.001
Sensor	CMOS
Sensor & Size	CMOS 2.0M/1M x 290 (C) 1/2.8" (5.56 X 3.13)
Pixel (µm)	2.9 x 2.9
G Sensitivity Dynamic Range SN Ratio	C-Mount
FPS/Resolution	17 @ 1920 x 1280
Binning	1 x 1
Exposure	0.105ms ~ 15s

Download Product Catalog PDF

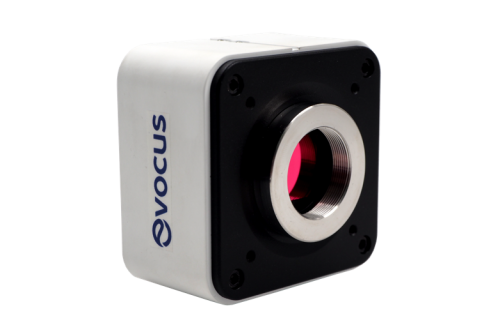

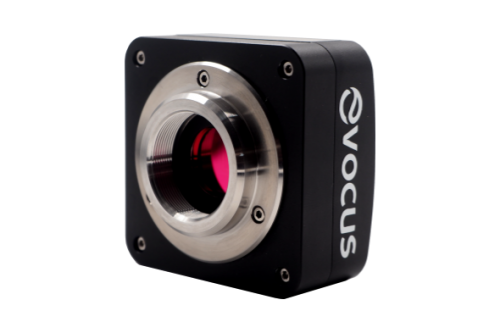

Opticam Full HD CMOS USB 6MP Camera with Measurement Function

All in 1 (HDMI + USB + SD Card) C-mount camera with high sensitivity CMOS Sensor
Simultaneous HDMI & WiFi output
Built-in mouse control
Built-in image capture & video record to SD card
Ultra-Fine color engine with perfect color reproduction capability
CNC shell molding design

Model	EVS-U60.001
Sensor Type/Size	CMOS 1/1.8"
Color/Mono	Color
Pixel Size	2.4 x 2.4 µm
Resolution	3072 (H) x 2048 (V)
Frame	40fps @6MP
Shutter Mode	Rolling
Exposure Time	0.13ms - 15s
Automatic Set	Exposure, Color Scale, White Balance
Manually Set	Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction
Color Temperature	2000 - 15000K
ADC Depth	12 bit
PC Software	Zootos iX/Capture 2.0
Picture Format	JPEG/PNG/TIFF
Operating System	Windows/Linux/Mac
Multiple Cameras	Support 4 Cameras Simultaneously
Data Interface	USB 3.0
Optical Interface	Standard C-Mount
Camera Size	68 x 68 x 46mm
Camera Weight	330g
Operating Temperature	0 - 60°C

Download Product Catalog PDF

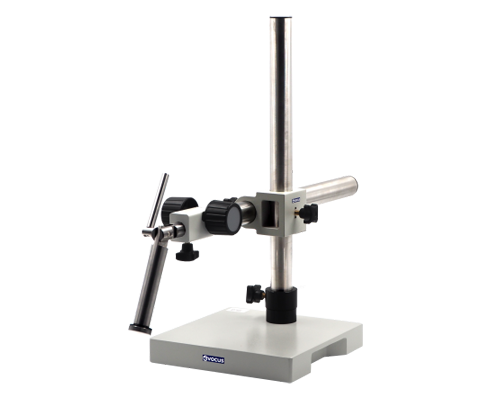

Boom Stand

Cast iron soleplate, anti-corrosive and wearable metal post, aluminum alloy rail
Can observe any direction with enlarge the range of observation
Shortest flexed length is 560mm, longest is 605mm

Model	EVS-L90.101
Height of Vertical Post	475mm
Diameter of Vertical Post	37mm
Length of Horizontal Post	475mm
Diameter of Mounting Holes in the Front of Horizontal Bar	Ø25mm
Base Dimension	254 x 254 x 40mm

Download Product Catalog PDF

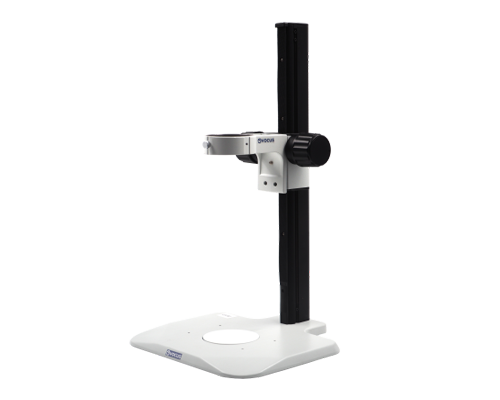

High Track Stand

Give user the ultimate range of working distance with the high track length (up to 500mm)

Model	EVS-L90.102
Scope Holder	76mm
Height of Track Stand	500mm
Travel Distance	460mm
Base Size	320 x 305 x 16mm
Reading Precision	0.1mm
Black and White Plate Diameter	95mm

Download Product Catalog PDF

Top and Bottom Light Stand

A super large size table stand with two LED lights for stereo microscope

Model	EVS-L90.103
Length of Pillar	305mm
Crossing Diameter of Pillar	32mm
Base Plate Material	Solid Cast Steel
Base Plate Dimension	320 x 280 x 20mm
Connecting Size	Ø95mm

Download Product Catalog PDF

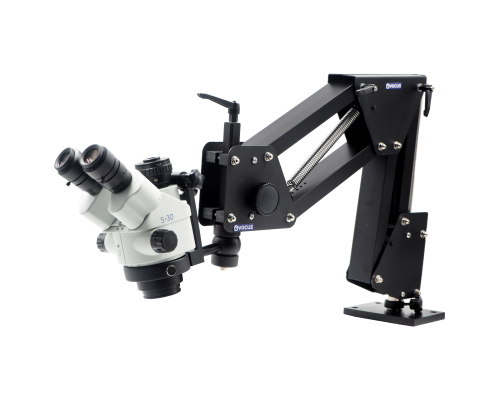

Acrobatic Arm Stand

With outstanding flexibility, this “Acrobat” stand works with you, not against you.
It’s easily positioned during work and swings away when desired. Arms move with adjustable friction or can be locked if desired. Built-in headrest reduces neck and back strain.

Model	EVS-L90.104
Bracket Hole	Ø76 - 77mm
Control High Range	50mm
Spin Angle	Horizontal±15º, Straight ±15º
Main Straight	270º
Material	Hard Aluminum Alloy
Total Height	500mm
Packing Size	52 x 48 x 17cm

Download Product Catalog PDF

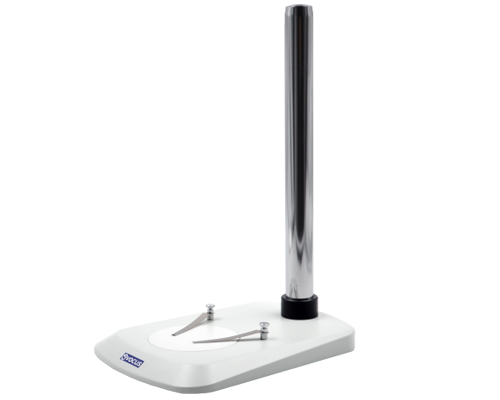

Extended Base & Stand

Stereo microscope table stand with butterfly base and long pillar
A long pillar (380mm) gives the user more freedom to adjust their working distance, hence larger sample can be used to inspect.
Fit to 76mm stereo microscope

Model	EVS-L90.105
Height of Post Stand	380mm
Crossing Diameter of Pillar	32mm
Base Plate Material	Solid Cast Steel
Base Plate Dimension	185 x 267 x 19mm

Download Product Catalog PDF

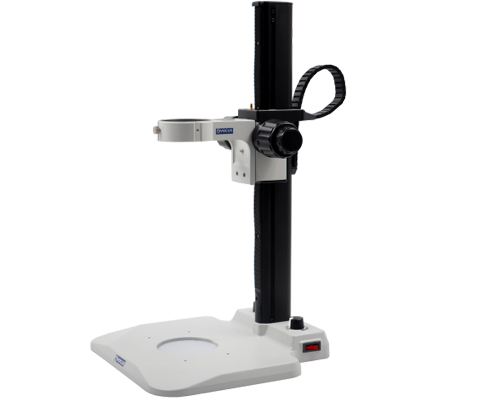

LED Track Stand

A super large size table stand with coarse and fine focusing
This high track stand can be used in all of 76mm body series microscopes.

Model	EVS-L90.106
Scope Holder	76mm
Height of Track Stand	500mm
Travel Distance	460mm
Coaxial Focus	23mm/circle
Fine Focus	0.56mm/circle
LED Transmitted Light Base Size	320 x 316 x 21mm
Glass Plate Diameter	95mm
Voltage Input	AC 90-240V, 50/60Hz

Download Product Catalog PDF

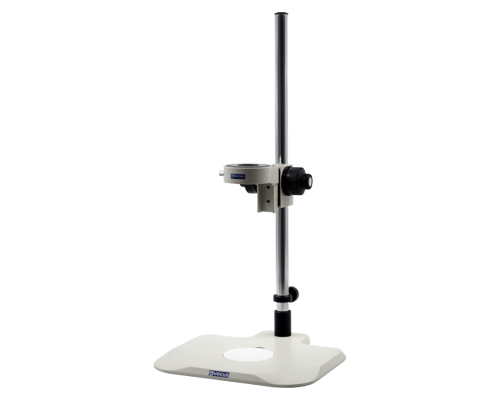

High Post Stand with Fine Focusing

Extended pillar stand up to 500mm with coarse and fine focusing
Fit to all 76mm body series microscope

Model	EVS-L90.107
Scope Holder	76mm
Center to Center Distance	150mm (From the center of vertical post to the center of holder)
Height of Post Stand	500mm
Fine Focus	180mm
Black and White Plate Diameter	95mm
Base Size	320 x 305 x 16mm

Download Product Catalog PDF

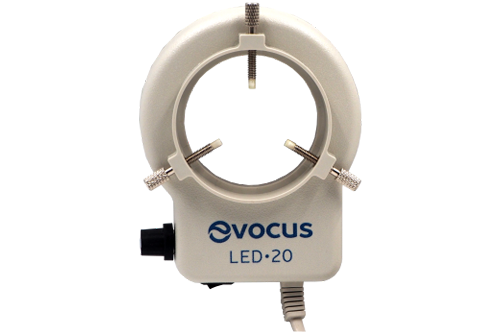

Standard LED Ring Light for S20

Adjustable LED ring light that uses unleaded material
Brightness precise adjustment between 0-100%, can eliminate the reflective of illuminator
Long LED life, up to 20,000 hour

Model	EVS-L90.201
Outer Diameter	ø97mm
Inner Diameter	ø63mm
Power	4.5W
Input Voltage (AC)	100V - 240V
Output Voltage (DC)	12V
Brightness Adjust	0 - 100%
Working Distance	65 - 150mm
Quantity of LED	56 pieces
Color Temperature	Conventional white light 6400K (or ordered by the need of customer)
Luminance (lux)	40000Lux at height of 65mm
Power Supply Dimension	110 x 60 x 32mm
LED Life	> 20000 hours
Temperature/Humidity	0 ~ 40º / 20 ~ 80%
Outline Dimension	Length 120 x Height 30 x Outside Diameter ø97mm x Inner Diameter ø63mm

Download Product Catalog PDF

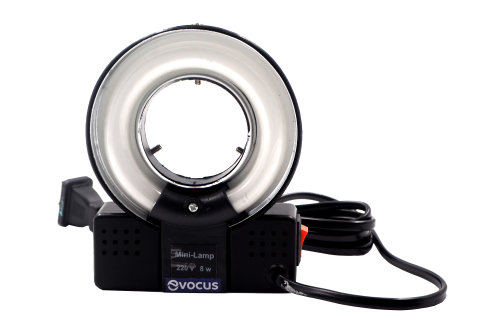

Fluorescent Ring Light

All-in-one design, compact structure, low heat, soft and natural lighting
No stroboflash, no distortionless, no photochromic, and long life
Ageing resistance, inflaming retarding
Because of the ring design, illumination section have no shadow

Model	EVS-L90.204
Watt	8W
Input Voltage	110/AC, 220/AC (or by customizing)
Color Temperature	6400K (or by customizing)
Connecting Caliber	Ø58mm

Download Product Catalog PDF

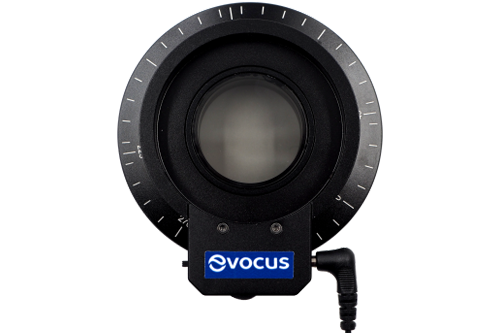

Polarized LED Ring Light

Adopt special polarized glass, excellent polarized effect
Integrated design easy to install and save space
Color temperature is steady when adjusting the brightness
Longer lifetime LED light than fluorescent lamp, no flicker

Model	EVS-L90.203
Light Intensity	0 ~ 100%
Light Color	White
Working Distance	40 ~ 120mm
Lifetime	20,000 hours
Input Voltage (DC)	DC24V/500mA
Drive Method	Constant Voltage
Environment Temperature and Humidity	0 ~ 40ºC / 20 ~ 80%
Quantity of LED	120 pieces (F3 plug-in LEDs)
Outline Dimension	Length 99 x Height 33 x Outside Dia. Ø90mm x Inner Dia. Ø35mm

Download Product Catalog PDF

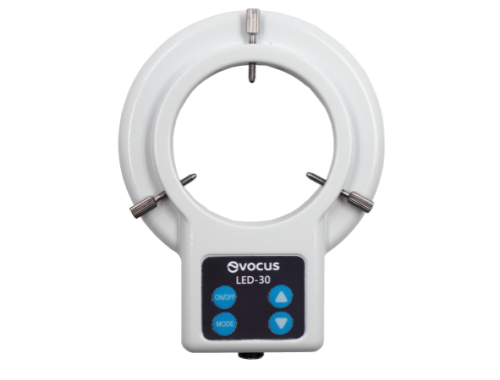

Standard LED Ring Light for S30/S50

80pcs bright white LED bulbs ring light kit for stereo microscopes.
With variable intensity control, it provides cool, even, intense and focused shadow-free illumination.
An ideal durable cool light source for microscopes.

Model	L90.202
Working Voltage	100-240V
Output Voltage	12V
No. of LED	80 pcs
Brightness Adjustment	0~100% adjustable
Sectional Lighting Control	Available
AC Adapter	Separated from lamp house
ON/OFF Switch	Built on lamp house
Color Temperature	Around 6500K
Brightness at Height of 100mm	Around 14000 Lux
Inner Diameter	61mm (Min 40mm)
Power	3.2W
Material of Ring Light House	Aluminium
Painting Color of Ring Light House	White
Life Span	20,000 hours

Download Product Catalog PDF

Mechanical Stage with Rotary

Hold and rotate your sample without having to touch them

Model	EVS-L90.301
Type	Ball Bearing Rack
Stage Dimension	180 x 155 x 26mm
Travel Distance	Horizontal 75mm, Vertical 55mm
Glass	360° Rotary
Reading Precision	0.1mm
Connecting Size	Ø95mm

Download Product Catalog PDF

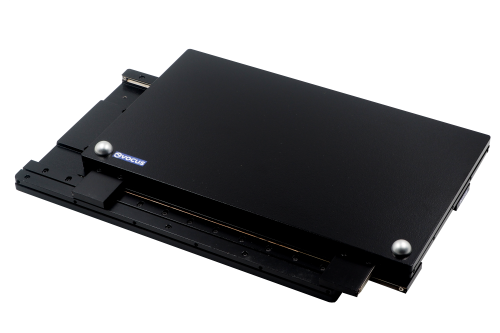

Manual Stage Table

Quick and easy to move, easy to stop at any position

Model	EVS-L90.302
Stage Dimension	380 x 230 x 36mm
XY Travel Distance	300 X 250mm
Material	Metal

Download Product Catalog PDF

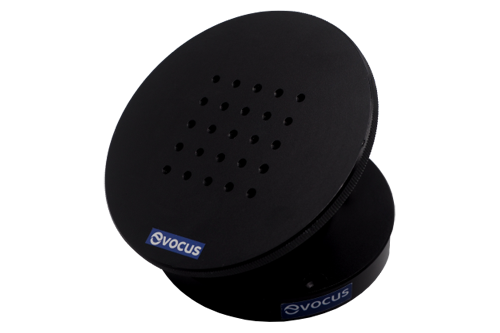

Tiltable Stage

Tilt your sample up to 45° within the range of 360° of the stage!

Model	EVS-L90.303
Top Stage Diameter	Ball Bearing Rack
Bottom Stage Diameter	95mm
Total Height	60mm
Rotable	The angle can be tilted from 0 - 45° within the range of 360° of the stage

Download Product Catalog PDF

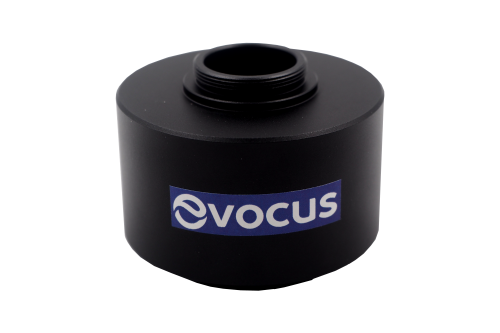

0.5x C-Mount Adaptor for Olympus Microscope

Convert the Olympus trinocular microscope phototube/head/port to traditional C-Mount type

Model	EVS-L90.902
Magnification	0.50x
Sensor Type	1/1.8", 1/2", 1/2,5"
Mount Type	C-Mount

Download Product Catalog PDF

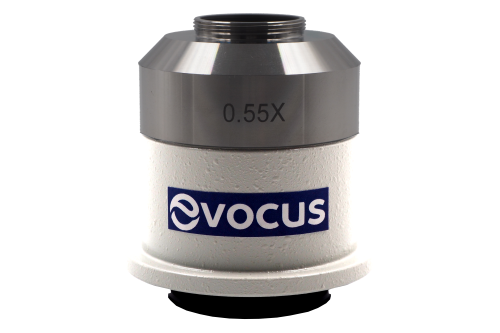

TV Tube 0.55x C-Mount Adaptor for Nikon Microscope

Convert the Olympus trinocular microscope phototube/head/port to traditional C-Mount type

Model	EVS-L90.903
Magnification	0.55x
Sensor Type	1/1.8", 1/2", 1/2,5"
Mount Type	C-Mount

Download Product Catalog PDF

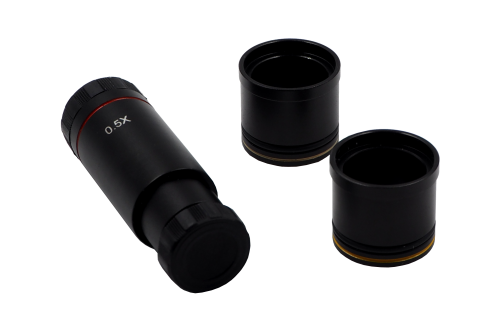

Eyepiece Camera Adaptor

Decrease magnification by half
Double the field of view
Standard C-Mount attachment
Easy to install and affordable solution

Model	EVS-L90.901
Adapter Type	C-Mount Adapter
Adapter Reduction Power	0.5x
Adapter Size	25.4mm
Adapter Application	C-Mount

Download Product Catalog PDF

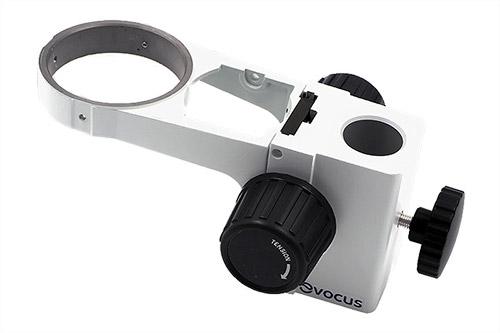

Stereo Microscope Head Holder

Hold your microscope head steadily and more balance!

Model	EVS-S20.008
Microscope Holder	76mm
Diameter of Opening	Ø32mm
Center to Center Distance	160mm (From the center of vertical post to the center of holder)
Net Weight	0.9kg

Download Product Catalog PDF

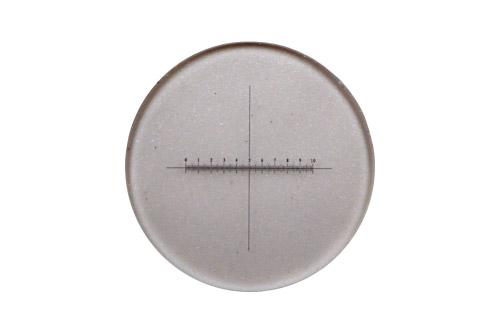

Eyepiece Reticle

Eyepiece scale micrometer

Model	EVS-S20.009
Diameter	20mm
Thickness	1.35mm
Single Line	10mm/20 Div

Download Product Catalog PDF

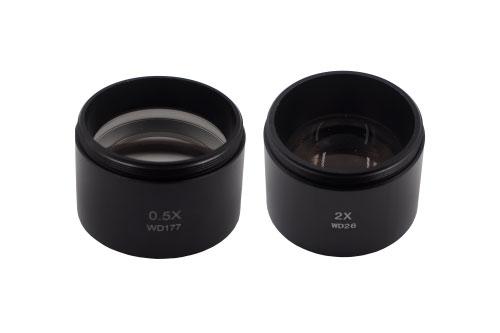

Objective Lens for Stereo Microscope

AUX Objective lens to boast your zoom stereo microscope!

Model	EVS-S50.007	EVS-S50.010
Magnification Power	0.5x	2.0x
Working Distance	177mm	26mm
Mounting Thread	48mm	48mm

Download Product Catalog PDF

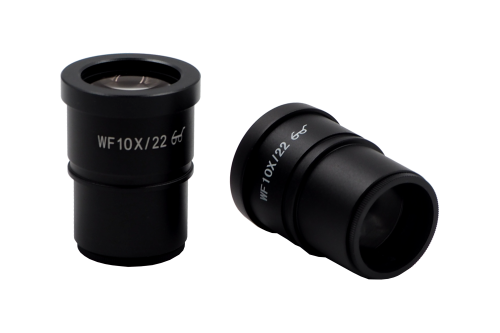

10x Eyepiece for Stereo Microscope

Wide field of view eyepiece for stereo microscope to enhance your magnification!

Model	EVS-S20.003
Magnification Power	10x
Field of View	22mm
Mounting Size (in diameter)	30mm

Download Product Catalog PDF

15x Eyepiece for Stereo Microscope

Wide field of view eyepiece for stereo microscope to enhance your magnification!

Model	EVS-S20.004
Magnification Power	15x
Field of View	15mm
Mounting Size (in diameter)	30mm

Download Product Catalog PDF

20x Eyepiece for Stereo Microscope

Wide field of view eyepiece for stereo microscope to enhance your magnification!

Model	EVS-S20.003
Magnification Power	20x
Field of View	10mm
Mounting Size (in diameter)	30mm

Download Product Catalog PDF

Accessories

Camera

Stand

Illuminator

Stage

C-Mount Adaptor

Microscope Accessories
