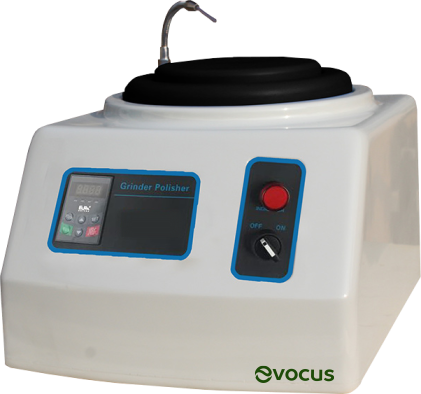

Grinding and Polishing Machine - Kashima Series

Single/Double disc metallographic specimen grinding and polishing machine with adjustable speed.




*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement​​​​​​



Easy operation by equipped with single disc


Features stepless speed changing grinding and polishing


Rotating speed of grinding and polishing disc is adjustable from 50 to 1000rpm


Realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing


Available with Double Disc Mode - Kashima-2B



Specifications

Model KASHIMA-1B KASHIMA-2B
Grinding/Polishing Disc Diameter Ø200mm
Grinding Disc Rotating Speed 50 - 1000rpm (Stepless Speed)
Motor 250W 550W
Dimension 400 x 730 x 310mm 700 X 600 X 278mm
Weight 13kg 50kg
Operating Voltage AC 220V, 50Hz

Download Product Catalog here!
