Evocus Automatic Grinding/Polishing Machine (PressDrive Series)
Automatic metallographic grinding and polishing system supporting both center-force and single-point-force preparation.
Intelligent touchscreen control, programmable preparation methods, flexible pressure modes and repeatable sample preparation.
Automatic Metallographic Grinding & Polishing
PressDrive supports automatic specimen preparation with both center-force and single-point-force pressurization. Between one and six samples can be prepared at the same time.
Key Features
Intelligent Operating System
8-inch color touch screen with 12 languages, manual/automatic modes, 256 stored preparation programs, USB import/export and fault-code prompts.
Working Position Range Indicator
An indicator light confirms when the grinding and polishing head has entered its working range.
Manual & Automatic Together

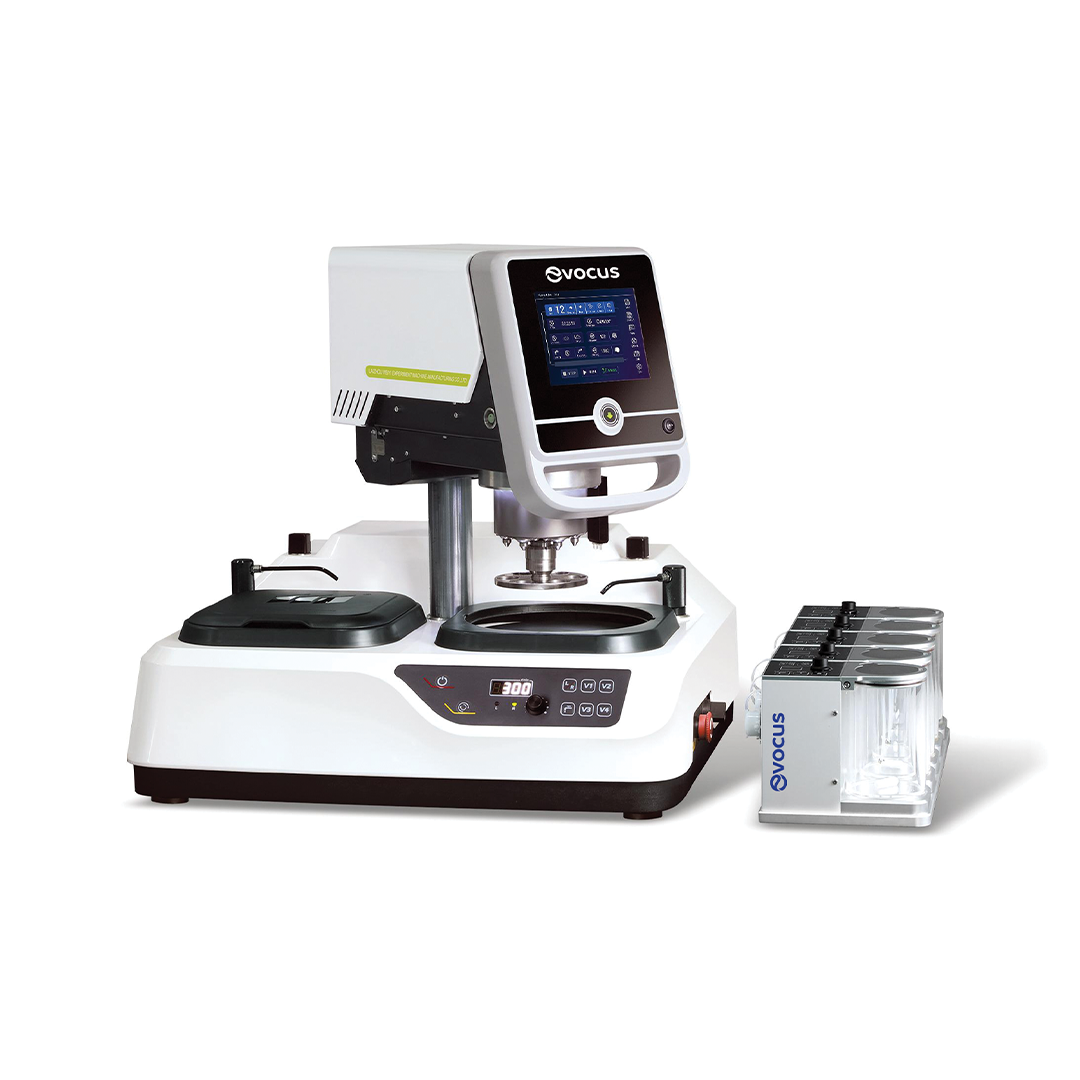

PressDriveDual can perform automatic preparation while manual grinding/polishing is carried out on the other independently controlled disc.
Online Dripper Integration
Multiple drippers can be programmed with the machine, including working status, quick discharge and dripping-speed parameters.
0–150 rpm Power Head
Head speed can be set from 0 to 150 rpm; pressure mode and pressure value can also be configured at 0 rpm.
Two Pressurization Methods
Center force or single-point force can be selected, with 1 to 6 samples prepared simultaneously.
Program Encryption Library
Content notes and hierarchical encryption settings help protect programmed preparation methods.
Electric Lifting Head
Electric lifting and lowering controls the holder-to-disc distance and improves operating quality.
Intelligent Touchscreen Control
The 8-inch color touchscreen supports 12 languages and can store 256 sample-preparation programs. Programs can be imported or exported by USB. When human error occurs, the system displays a fault-reason code to assist correction.
Pressurization, Control & Grinding/Polishing Head Features
Two Pressurization Methods
There are two pressurization methods, center force and single-point force, which can be selected according to sample-preparation requirements. From 1 to 6 samples can be prepared at the same time.
Program Encryption Library
Content notes and hierarchical encryption settings can be applied to programmed methods to help prevent program loss caused by improper operation.
Touch Operation Screen
The touch screen displays more information and functions, providing a richer visual interface and interactive operating experience.
Grinding & Polishing Machine Status Indicator Light
Blue light indicates working status, white light indicates standby, and red light indicates failure.
Telescopic Faucet
The retractable faucet makes it easier to clean dirt remaining in the sink after polishing, helping extend the usable life of the machine.
Two-Hand Control Buttons
Two-hand control is designed to reduce safety risks that can arise when the other hand is free during one-hand operation.
Adjustable Height Holder
According to the sample height, the distance between the grinding/polishing disc and the holder can be adjusted to help avoid eccentric grinding.
Electric Lifting Grinding & Polishing Head
Electric lifting and lowering of the grinding and polishing head improves operating quality, avoids falling caused by insufficient air pressure, and controls the distance between the holder and the grinding/polishing disc.
Main Technical Parameters
| Specification | PressDrive | PressDriveDual |
|---|---|---|
| Input Voltage | AC220 V 50 Hz | |
| Input Power | 2.1 kW | 2.1 kW |
| Wheel Diameter | Ø200 / 250 / 300 mm | Ø200 / 250 mm |
| Rotational Speed | 0–1000 r/min, 20 rpm adjustable step & 150 / 300 / 600 / 1000 r/min 0–600 r/min for 300 mm disc |
|
| Wheel Direction | Clockwise or anticlockwise | |
| Power Head Speed | 0–150 r/min | |
| Single Force Loading Range | 5–60 N | |
| Central Force Loading Range | 20–200 N | |
| Preparation Sample Quantity | 6 PCS | |
| Holder | Ø30 mm; optional Ø22 / 25 / 40 / 50 mm | |
| Sample Preparation Time | 0–12 h | |
| Languages | 12 languages | |
| Programs | 256 sets of grinding and polishing formulas | |
| Compressed Air Pressure | 0.35–0.5 MPa | |
| Dimensions | 596 × 714 × 707 mm | 760 × 706 × 717 mm |
| Net Weight | 102 kg | 126 kg |
Programmable & Repeatable Metallographic Sample Preparation
PressDrive / PressDriveDual combines automatic grinding and polishing, selectable force modes, programmable process control, adjustable head speed and integrated dripper management
