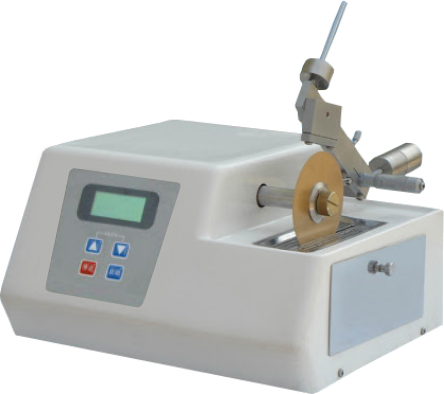

Precision Cutting Machine - Sendai Series

Low-speed precise specimen cutting machine, capable to cut various hard metals





*All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement





Suitable for the precise cutting of various hard materials


150mm Diamond Disc Size with Sliding Micrometer


Digital Operation Panel which can Display and Change Cutting Speed.


Can be equipped with diamond saw blade and other resin blade so as to meet the demands of cutting of various specimens

Specifications

Model SENDAI-5
Movable Stand Travel 25mm
Positioning Accuracy 0.01mm
Rotating Speed of Main Shaft 10 - 600rpm adjustable
Blade Diameter 100 x 0.5 x 20mm
Power Supply Single Phase, 220V, 50Hz
Motor 80W
Dimension 350 x 305 x 205mm
Net Weight 18.5kg
Voltage 220V, 50/60Hz
